(02-01) - ENGINE MOUNTING

Запчасти Case CX135SR (02-01) - ENGINE MOUNTING (02) - ENGINE

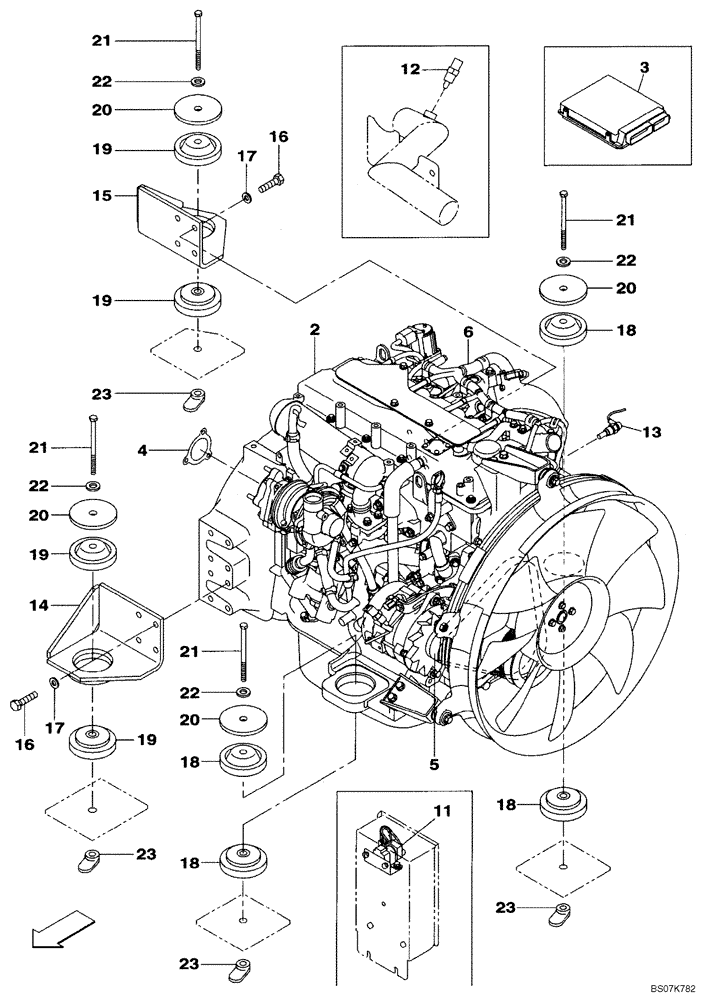

Схема запчастей Case CX135SR - (02-01) - ENGINE MOUNTING (02) - ENGINE
20
21
22
2
23
17
5
21
18
22
19
16
14
16
19
12
21
20
23
11
23
23
18
22
15
13
18
22
17
20
18
19
6
3
4
20
19
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KNH10540

ENGINE,4 Cylinders, W/ Turbocharger

See Figures 02-33, 03-04 - 03-07, 04-15 - 04-19

1шт.

2

KNH10540EC

CORE-ENGINE

Environmental Core, For N.A. Only

1шт.

3

87725187

ECU

See Figure 04-16

1шт.

4

167913A1

GASKET

Exhaust

1шт.

5

87588086

BELT

Fan

1шт.

6

87601012

HARNESS

Engine

1шт.

11

150070A1

RELAY

1шт.

12

KHH0535

SENSOR

1шт.

13

KHH0536

SENSOR

1шт.

14

KNH10420

ENGINE MOUNT

1шт.

15

KMH10120

ENGINE MOUNT

1шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

17

150811A1

WASHER

8шт.

18

KNH10410

RUBBER MOUNTING

4шт.

19

KNH10400

RUBBER MOUNTING

4шт.

20

KRH10190

PLATE

4шт.

21

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

22

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

23

KRH1251

SPECIAL NUT

4шт.
