(08-123) - CONTROL VALVE - MONOBLOCK BOOM, OFFSET BACKHOE BOOM - WITH DOZER BLADE

Запчасти Case CX135SR (08-123) - CONTROL VALVE - MONOBLOCK BOOM, OFFSET BACKHOE BOOM - WITH DOZER BLADE (08) - HYDRAULICS

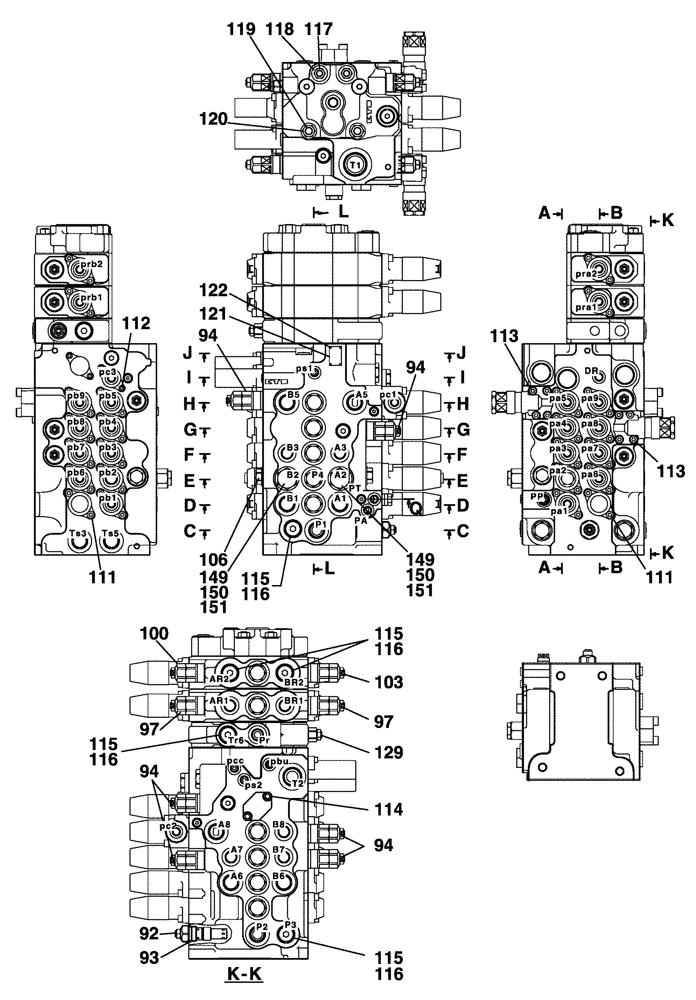

Схема запчастей Case CX135SR - (08-123) - CONTROL VALVE - MONOBLOCK BOOM, OFFSET BACKHOE BOOM - WITH DOZER BLADE (08) - HYDRAULICS
112
129
119
150
122
115
115
116
118
116
151
111
116
114
150
149
97
116
115
94
151
93
103
92
120
117
100
94
97
106
113
115
111
94
113
121
149
94
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KMJ10720

CONTROL VALVE

Include(s) 92 - 129, See also Figure(s) 08-124 01 to 08-124 06

1шт.

92

LJ01006

VALVE, PRESSURE RELI

EF Valve, Include(s) 93

1шт.

93

155223A1

O-RING

1шт.

94

KMJ2914

VALVE PRESSURE RELIE

See Figure(s) 08-124 06

6шт.

97

LJ01007

VALVE, PRESSURE RELI

EF, See Figure(s) 08-124 06

2шт.

100

LJ01121

VALVE, PRESSURE RELI

EF

1шт.

103

LJ01101

VALVE, PRESSURE RELI

EF

1шт.

106

165839A1

PLUG

1шт.

111

LUC0120

BOLT,Hex Skt Hd

40шт.

112

LUC0118

BOLT,Hex Skt Hd

4шт.

113

108R008Z050N

BOLT

8шт.

114

108R010Z040B

BOLT

2шт.

115

163370A1

PLUG

Include(s) 116

5шт.

116

154487A1

O-RING

1шт.

117

LB00839

VALVE POPPET

2шт.

118

LUC0095

SPECIAL NUT

2шт.

119

LB00840

VALVE POPPET

2шт.

120

LUC0094

SPECIAL NUT

2шт.

121

NSS

NOT SOLD SEPARAT

1шт.

122

NSS

NOT SOLD SEPARAT

4шт.

129

LJ01008

VALVE, PRESSURE RELI

EF, See Figure(s) 08-124 06

1шт.

149

LK00302

PLUG

Include(s) 150, 151

2шт.

150

165836A1

PLUG

1шт.

151

154503A1

O-RING

1шт.
