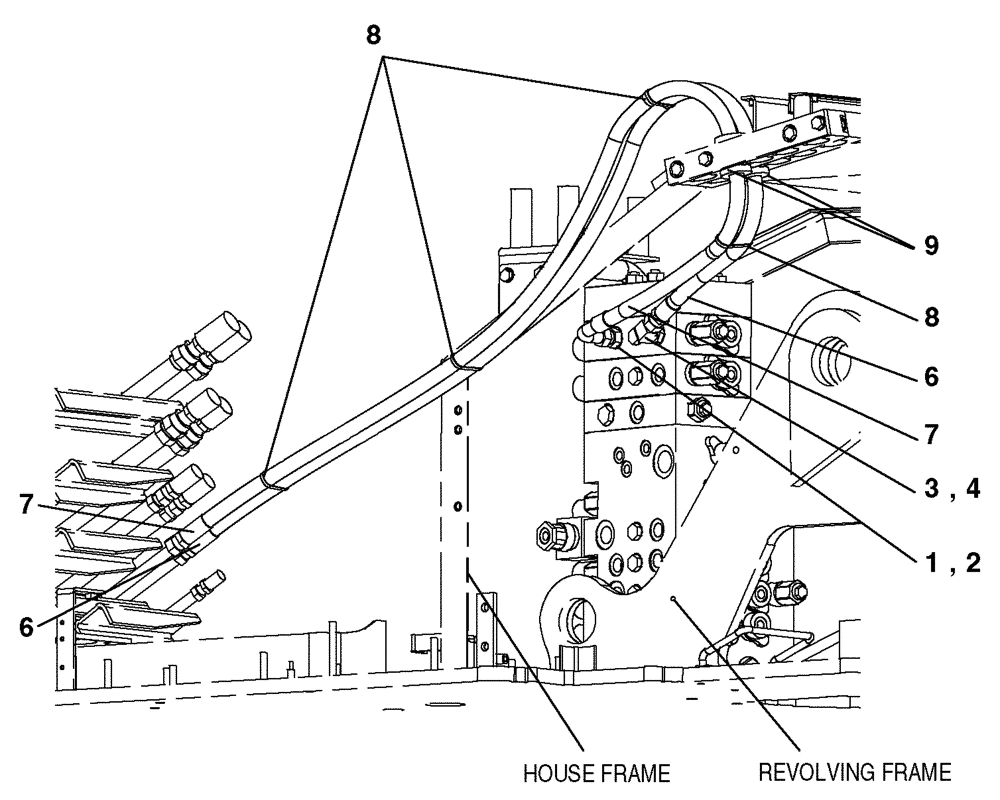

Запчасти Case CX135SR (08-116) - HYDRAULIC CIRCUIT - SECOND OPTION - OFFSET BACKHOE BOOM (08) - HYDRAULICS

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Include(s) 2

1шт.

2

154487A1

O-RING

1шт.

3

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Include(s) 4

1шт.

4

154487A1

O-RING

1шт.

6

KMJ2883

HOSE ASSY.,12.70 mm ID x 1780.00 mm

1шт.

7

KMJ2884

HOSE ASSY.,12.70 mm ID x 1880.00 mm

1шт.

8

150498A1

MOUNTING CLIP

300mm

1шт.

9

KHJ2021

HOSE CLAMP

2шт.
