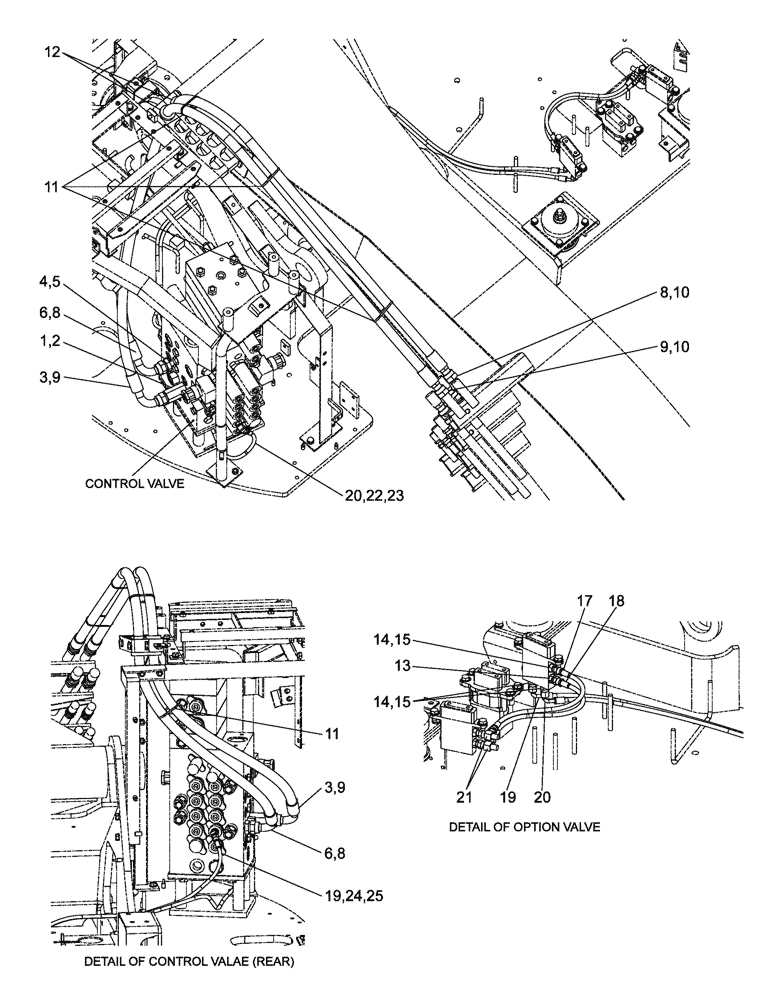

Запчасти Case CX135SR (08-115) - HYDRAULIC CIRCUIT - DOUBLE ACTING - OFFSET BACKHOE BOOM (08) - HYDRAULICS

1

KHJ1495

ADAPTER

Include(s) 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KHJ1348

ADAPTER

Include(s) 5

1шт.

5

154503A1

O-RING

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KMJ2873

HOSE ASSY.,19.00 mm ID x 2400.00 mm

1шт.

9

KMJ2874

HOSE ASSY.,19.00 mm ID x 2350.00 mm

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

11

150498A1

MOUNTING CLIP

300 mm

4шт.

12

KHJ2023

HOSE CLAMP

2шт.

13

161841A1

HYD CONNECTOR

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

17

KHJ2240

HOSE

450 mm

1шт.

18

KHJ2240

HOSE

450 mm

1шт.

19

KHJ2240

HOSE

2200 mm

1шт.

20

KHJ2341

HOSE

2750 mm

1шт.

21

KHJ2130

TEE

2шт.

22

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

24

150933A1

ELBOW

Include(s) 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
