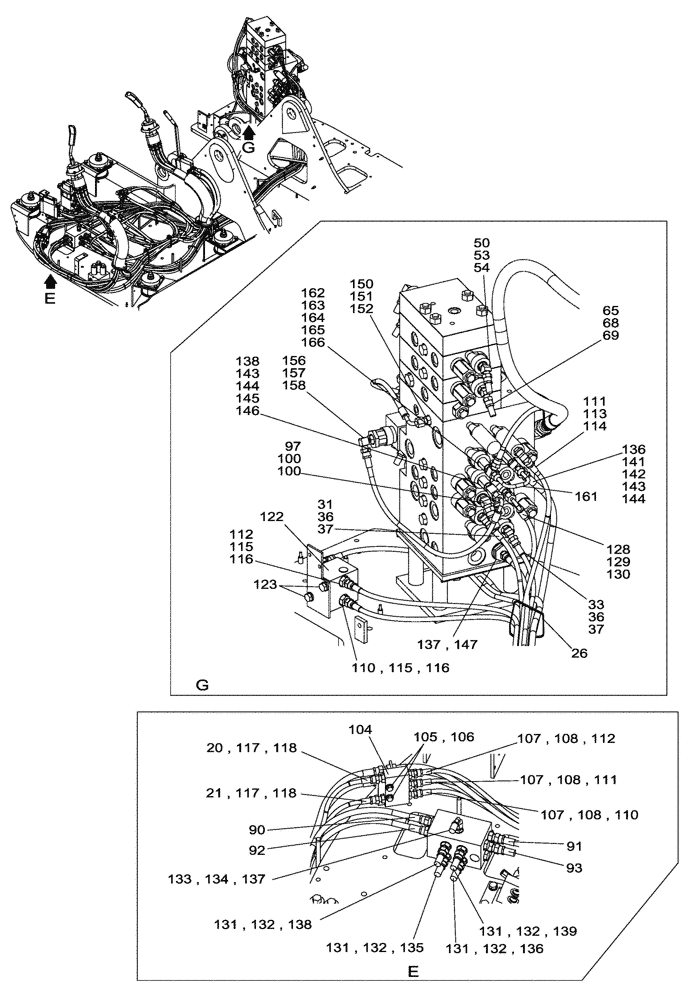

Запчасти Case CX135SR (08-114) - HYDRAULIC CIRCUIT - PILOT - WITH DOZER BLADE - OFFSET BACKHOE BOOM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
20
KHJ2391
HOSE
1500 mm
1шт.
21
KHJ2387
HOSE
1550 mm
1шт.
26
150498A1
MOUNTING CLIP
300 mm
6шт.
31
KHJ2166
HOSE,6.3mm ID x 2300mm L
2300 mm
1шт.
33
KHJ2341
HOSE
2200 mm
1шт.
36
150933A1
ELBOW
Include(s) 37
2шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
50
KHJ2077
HOSE
2800 mm
1шт.
53
150933A1
ELBOW
Include(s) 53
1шт.
54
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
65
KHJ2071
HOSE
2450 mm
1шт.
68
150933A1
ELBOW
Include(s) 69
1шт.
69
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
90
KHJ2323
HOSE
2200 mm
1шт.
91
KHJ2416
HOSE
1480 mm
1шт.
92
KHJ2438
HOSE
1650 mm
1шт.
93
KHJ2439
HOSE
1500 mm
1шт.
97
KHJ2347
HOSE
1шт.
100
161087A1
ELBOW
Include(s) 101
1шт.
101
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
104
KHJ17110
VALVE
1шт.
105
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
106
153081A1
WASHER
2шт.
107
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 108
3шт.
108
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
110
KHJ2074
HOSE
2600 mm
1шт.
111
KHJ2075
HOSE
2650 mm
1шт.
112
KHJ2074
HOSE
2600 mm
1шт.
113
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 114
1шт.
114
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
153378A1
ADAPTER
Include(s) 116
2шт.
116
154475A1
O-RING
1шт.
117
152747A1
ADAPTER
Include(s) 118
2шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
122
KHJ2317
VALVE, CUSHION
See Figure(s) 08-82
1шт.
123
166351A1
BOLT,Sems, M10 x 20mm
2шт.
128
KHJ2088
HOSE
850 mm
1шт.
129
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 130
2шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
131
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Include(s) 132
4шт.
132
154475A1
O-RING
1шт.
133
KHJ2136
ADAPTER
Include(s) 134
1шт.
134
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
135
KHJ2746
HOSE
3300 mm
1шт.
136
KHJ2102
HOSE
2700 mm
1шт.
137
KHJ2344
HOSE
2500 mm
1шт.
138
KHJ2349
HOSE
2550 mm
1шт.
139
KHJ2145
HOSE
3200 mm
1шт.
141
KHJ2132
TEE
Include(s) 142
1шт.
142
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
143
162525A1
STUD
Include(s) 144
2шт.
144
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
145
167517A1
TEE
Include(s) 145
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
147
KHJ1266
ADAPTER
1шт.
150
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 151
1шт.
151
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
152
KHJ2179
HOSE
450 mm
1шт.
156
KHJ2181
HOSE
580 mm
1шт.
157
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 158
1шт.
158
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
161
KMJ2716
HYD TUBE,6 mm ID x 8 mm OD
1шт.
162
KHJ2131
TEE
Include(s) 163
1шт.
163
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
164
162525A1
STUD
Include(s) 165
1шт.
165
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
166
KHJ2142
HOSE
500 mm
1шт.
Выбрано товаров: 67
