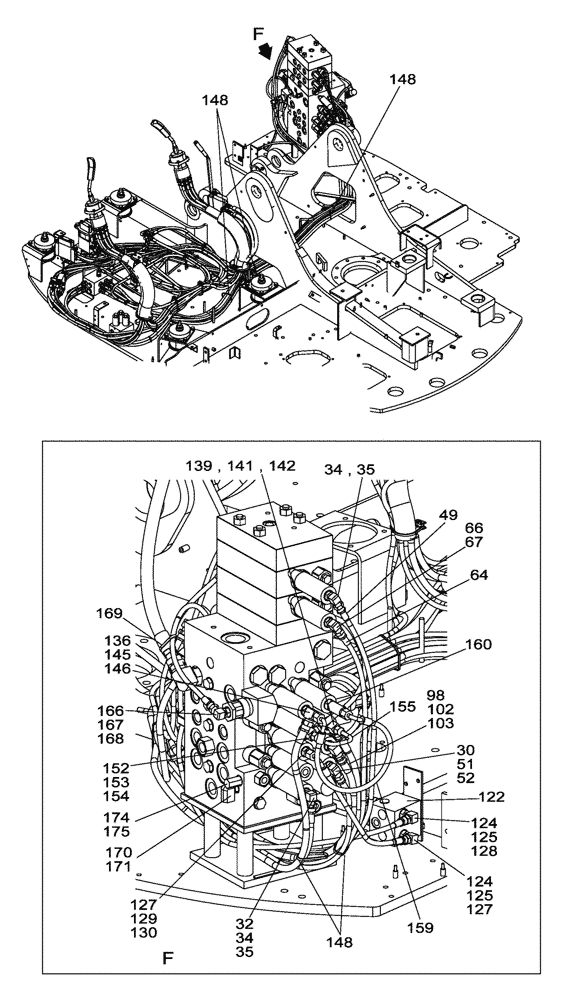

Запчасти Case CX135SR (08-113) - HYDRAULIC CIRCUIT - PILOT - WITH DOZER BLADE - OFFSET BACKHOE BOOM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
30
KHJ2166
HOSE,6.3mm ID x 2300mm L
2800 mm
1шт.
32
KHJ2341
HOSE
2300 mm
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 35
2шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
49
KHJ2082
HOSE
3400 mm
1шт.
51
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 52
1шт.
52
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
64
KHJ2174
HOSE
3100 mm
1шт.
66
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 67
1шт.
67
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
98
KHJ2348
HOSE
2450 mm
1шт.
102
153559A1
ELBOW
Include(s) 102
1шт.
103
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
122
KHJ2317
VALVE, CUSHION
See Figure(s) 08-82
1шт.
124
156554A1
ELBOW
Include(s) 124
2шт.
125
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
127
KHJ2343
HOSE
480 mm
1шт.
128
KHJ2088
HOSE
850 mm
1шт.
129
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
136
KHJ2102
HOSE
2700 mm
1шт.
139
KHJ2145
HOSE
1шт.
141
KHJ2132
TEE
Include(s) 141
1шт.
142
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
145
167517A1
TEE
Include(s) 146
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
148
150498A1
MOUNTING CLIP
300 mm
1шт.
152
KHJ2179
HOSE
450 mm
1шт.
153
KHJ2131
TEE
Include(s) 154
1шт.
154
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
155
KMJ2716
HYD TUBE,6 mm ID x 8 mm OD
1шт.
159
KHJ2350
HOSE
520 mm
1шт.
160
KHJ2415
VALVE, CUSHION
See Figure(s) 08-83
1шт.
166
KHJ2142
HOSE
500 mm
1шт.
167
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 168
1шт.
168
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
169
150498A1
MOUNTING CLIP
300 mm
1шт.
170
KHJ0719
ELBOW
Include(s) 171
1шт.
171
154475A1
O-RING
1шт.
174
162525A1
STUD
Include(s) 175
1шт.
175
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 41
