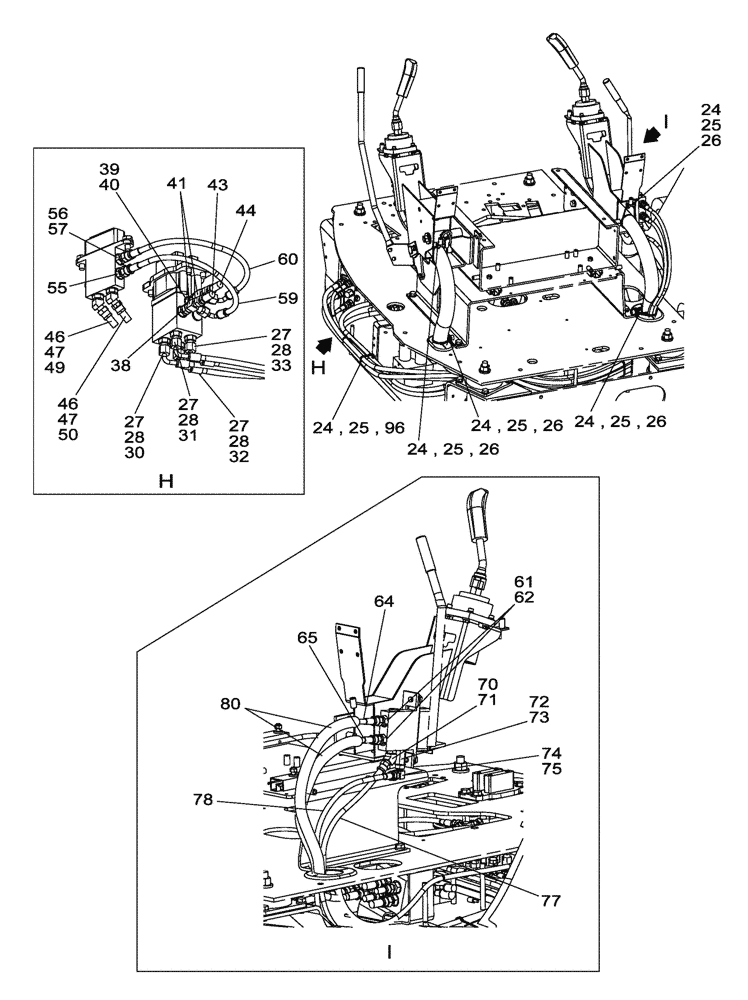

Запчасти Case CX135SR (08-111) - HYDRAULIC CIRCUIT - PILOT - WITH DOZER BLADE - OFFSET BACKHOE BOOM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
24
150860A1
COLLAR
5шт.
25
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
5шт.
26
150498A1
MOUNTING CLIP
300 mm
6шт.
27
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 28
4шт.
28
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
30
KHJ2167
HOSE
2800 mm
1шт.
31
KHJ2166
HOSE,6.3mm ID x 2300mm L
2300 mm
1шт.
32
KHJ2340
HOSE
2750 mm
1шт.
33
KHJ2341
HOSE
2200 mm
1шт.
38
161841A1
HYD CONNECTOR
1шт.
39
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 40
1шт.
40
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
41
KHJ2130
TEE
2шт.
43
KHJ1507
HYDRAULIC HOSE,6.35 mm ID x 420.00 mm
1шт.
44
168728A1
HYDRAULIC HOSE,6.30 mm ID x 400.00 mm
1шт.
46
150933A1
ELBOW
Include(s) 47
2шт.
47
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
49
KHJ2082
HOSE
3400 mm
1шт.
50
KHJ2077
HOSE
2800 mm
1шт.
55
161841A1
HYD CONNECTOR
1шт.
56
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 57
1шт.
57
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
59
KHJ2179
HOSE
450 mm
1шт.
60
KHJ2179
HOSE
450 mm
1шт.
61
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 61
1шт.
62
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
64
KHJ2174
HOSE
3100 mm
1шт.
65
KHJ2071
HOSE
2450 mm
1шт.
70
KHJ0994
ADAPTER
Include(s) 70
1шт.
71
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
72
162525A1
STUD
Include(s) 71
1шт.
73
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
74
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 75
1шт.
75
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
77
KHJ2052
HOSE
1100 mm
1шт.
78
KHJ2052
HOSE
1100 mm
1шт.
80
KHR4065
PLASTIC-RUBBER TUBE
2шт.
96
150496A1
MOUNTING CLIP
250 mm
1шт.
Выбрано товаров: 38
