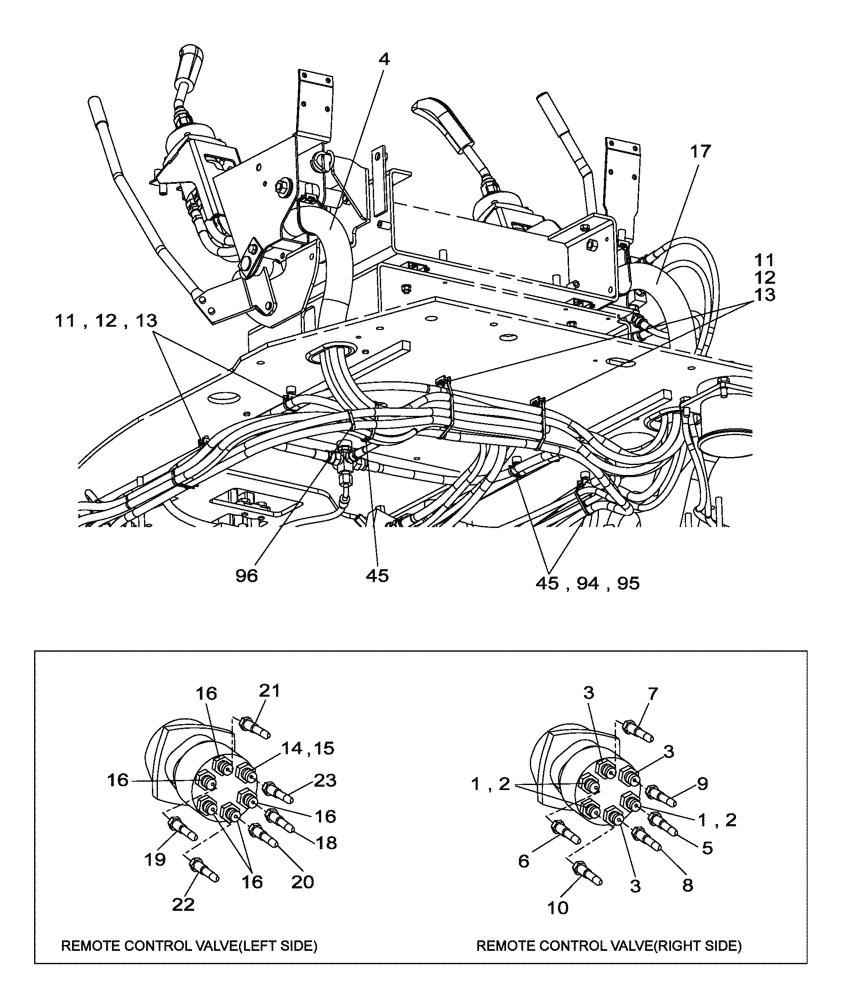

Запчасти Case CX135SR (08-110) - HYDRAULIC CIRCUIT - PILOT - WITH DOZER BLADE - OFFSET BACKHOE BOOM (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Include(s) 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

4

KHJ2578

PROTECTOR

1шт.

5

KHJ2368

HOSE

2350 mm

1шт.

6

KHJ2368

HOSE

2350 mm

1шт.

7

KHJ2387

HOSE

1550 mm

1шт.

8

KHJ2387

HOSE

1550 mm

1шт.

9

KHJ2182

HOSE

1450 mm

1шт.

10

KHJ2333

HOSE

1920 mm

1шт.

11

150860A1

COLLAR

4шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

300 mm

4шт.

13

150498A1

MOUNTING CLIP

4шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Include(s) 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

161841A1

HYD CONNECTOR

5шт.

17

KHJ2578

PROTECTOR

1шт.

18

KHJ2213

HOSE

1480 mm

1шт.

19

KHJ2213

HOSE

1480 mm

1шт.

20

KHJ2391

HOSE

1500 mm

1шт.

21

KHJ2387

HOSE

1500 mm

1шт.

22

KHJ2335

HOSE

1780 mm

1шт.

23

KHJ2336

HOSE

1800 mm

1шт.

45

150860A1

COLLAR

300 mm

3шт.

94

150860A1

COLLAR

300 mm

1шт.

95

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

96

150498A1

MOUNTING CLIP

250 mm

1шт.
