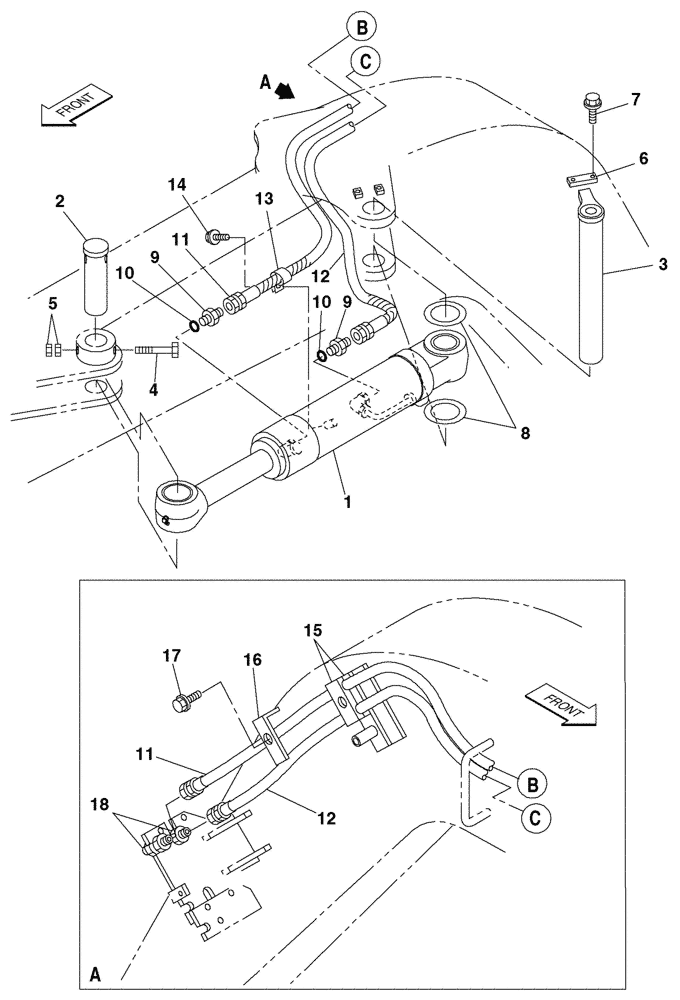

Запчасти Case CX135SR (08-108) - HYDRAULIC CIRCUIT - OFFSET CYLINDER (08) - HYDRAULICS

1

KMV2552

HYDRAULIC CYLINDER

See Figure(s) 08-109

1шт.

2

KMV1839

PIN

1шт.

3

KMV2619

PIN

1шт.

4

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

M16 x 1.5 x 140, 10.9

1шт.

5

829-13416

NUT,M16 x 1.5, Cl 10

2шт.

6

KHV0456

PLATE

1шт.

7

166351A1

BOLT,Sems, M10 x 20mm

2шт.

8

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

2шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Include(s) 10

2шт.

10

154487A1

O-RING

1шт.

11

KMV2813

HOSE ASSY.

2500 mm

1шт.

12

KMV2814

HOSE ASSY.

2150 mm

1шт.

13

KHV0471

HOSE CLAMP

1шт.

14

166345A1

BOLT

M8 x 16

1шт.

15

KMV2196

HOSE CLAMP

2шт.

16

KMV2393

PLATE

1шт.

17

166352A1

BOLT

M12 x 30

1шт.

18

KHJ0507

ADAPTER

2шт.
