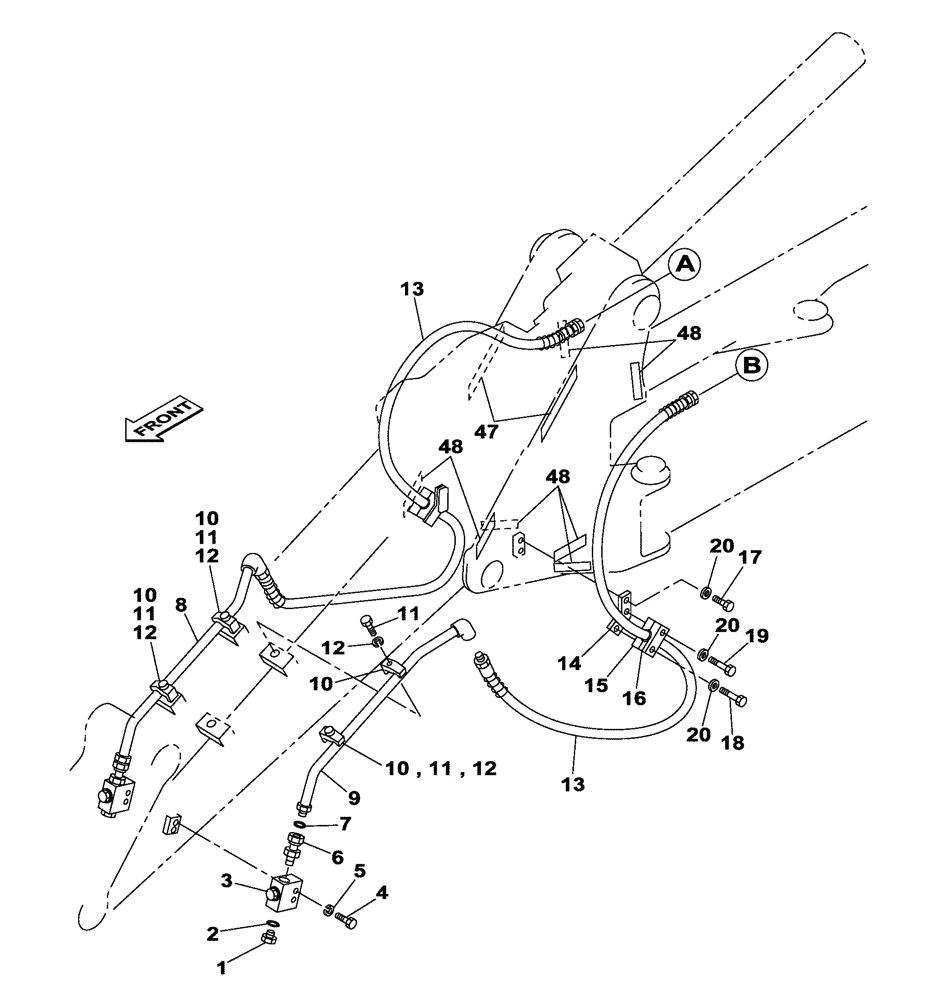

Запчасти Case CX135SR (08-107) - HYDRAULIC CIRCUIT - OFFSET BACKHOE BOOM - OPTIONAL (08) - HYDRAULICS

1

152924A1

PLUG

Include(s) 2

2шт.

2

154503A1

O-RING

1шт.

3

KHV10680

VALVE SECTION

2шт.

4

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

5

183-112VR

SPRING WASHER

4шт.

6

KHV0325

ADAPTER

2шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

8

KMV2477

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

9

KMV2476

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

10

151486A1

CLAMP BRACKET

4шт.

11

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

12

183-112VR

SPRING WASHER

4шт.

13

KMV2478

HOSE ASSY.,19.00 mm ID x 2700.00 mm

2шт.

14

KMV2961

BRACKET

2шт.

15

KMV2491

COLLAR

2шт.

16

KHJ2023

HOSE CLAMP

2шт.

17

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

18

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

19

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

47

KAV2641

DECAL

1шт.

48

KAV2640

DECAL

1шт.
