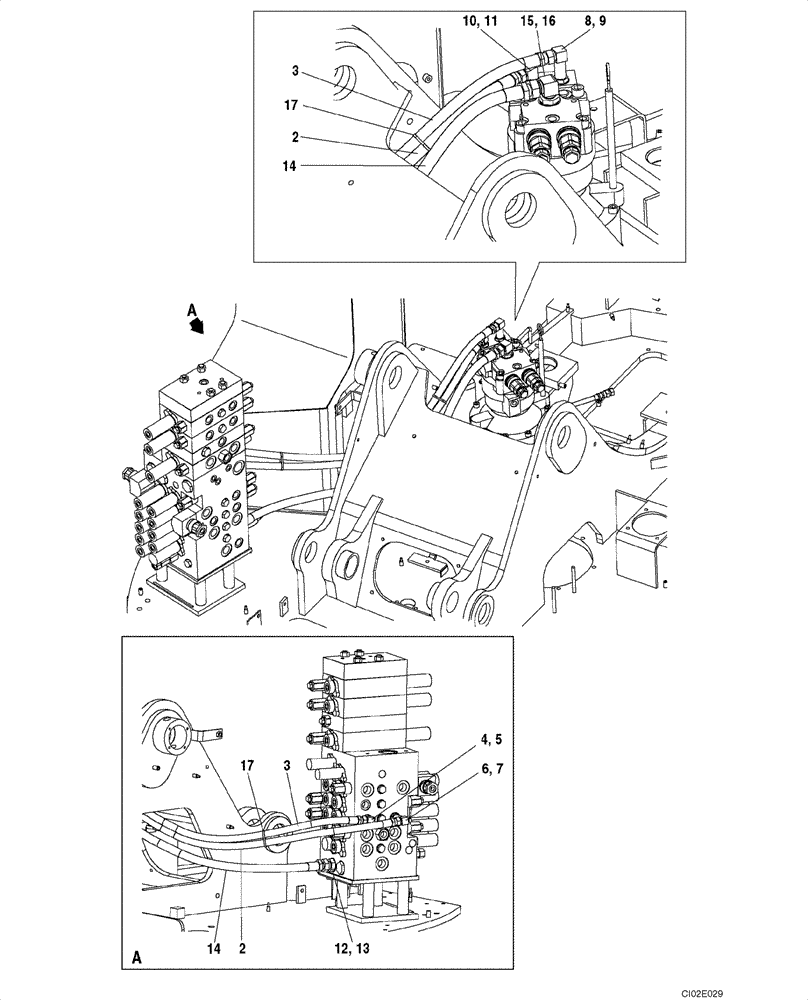

Запчасти Case CX135SR (08-017) - HYDRAULICS - SWING (08) - HYDRAULICS

2

KMJ2825

HOSE ASSY.,12.70 mm ID x 1300.00 mm

1шт.

3

KMJ2826

HOSE ASSY.,12.70 mm ID x 1250.00 mm

1шт.

4

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 7, Replaces KHJ1044

1шт.

7

154487A1

O-RING

1шт.

8

KHJ1044

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 11

1шт.

11

154487A1

O-RING

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 13

1шт.

13

154503A1

O-RING

1шт.

14

KMJ2827

HOSE ASSY.,19.00 mm ID x 1150.00 mm

1шт.

15

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 16

1шт.

16

154503A1

O-RING

1шт.

17

150496A1

MOUNTING CLIP

1шт.
