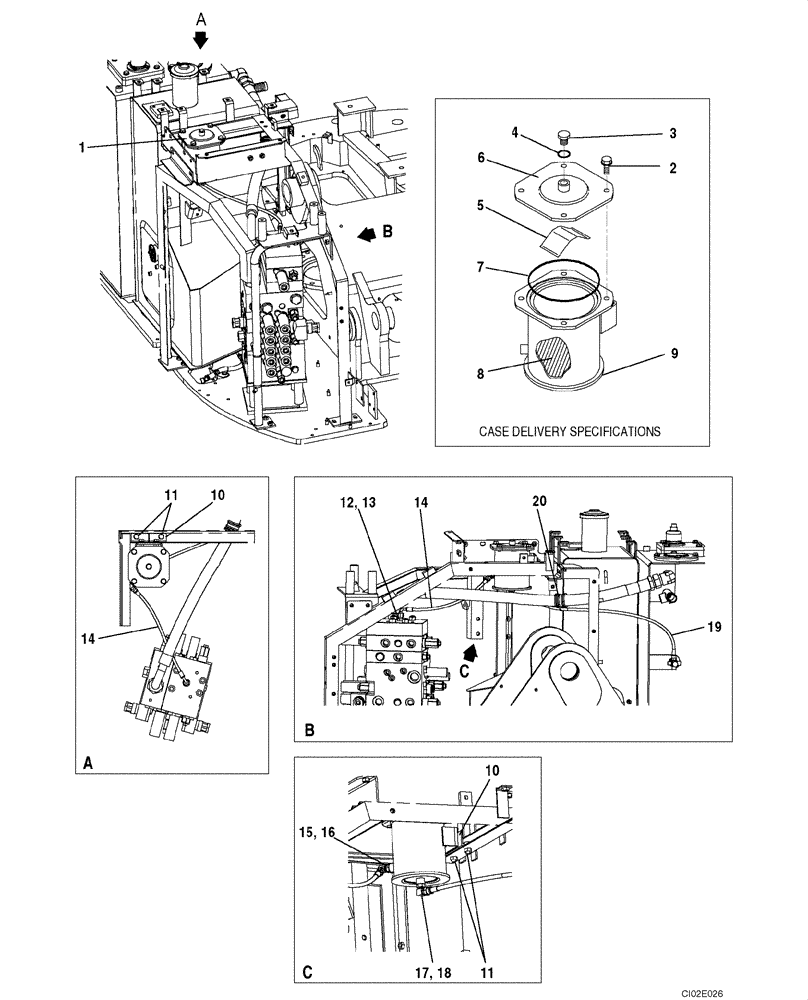

Запчасти Case CX135SR (08-010) - HYDRAULICS - BYPASS FILTER (08) - HYDRAULICS

1

KHJ2006

CASE ASSY.

Oil Filter; Incl. 2 - 9

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

4шт.

3

159285A1

PLUG

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1487

SPRING

1шт.

6

KHJ1486

COVER

1шт.

7

154797A1

O-RING

1шт.

8

167857A1

HYDRAULIC OIL FILTER

1шт.

9

KHJ2005

HOUSING

1шт.

10

KMJ2802

SUPPORT

1шт.

11

166052A1

BOLT

4шт.

12

153378A1

ADAPTER

Incl. 13

1шт.

13

154475A1

O-RING

1шт.

14

KHJ2180

HOSE,6.3mm ID x 500mm L

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

KHJ2175

HOSE

1шт.

20

150496A1

MOUNTING CLIP

1шт.
