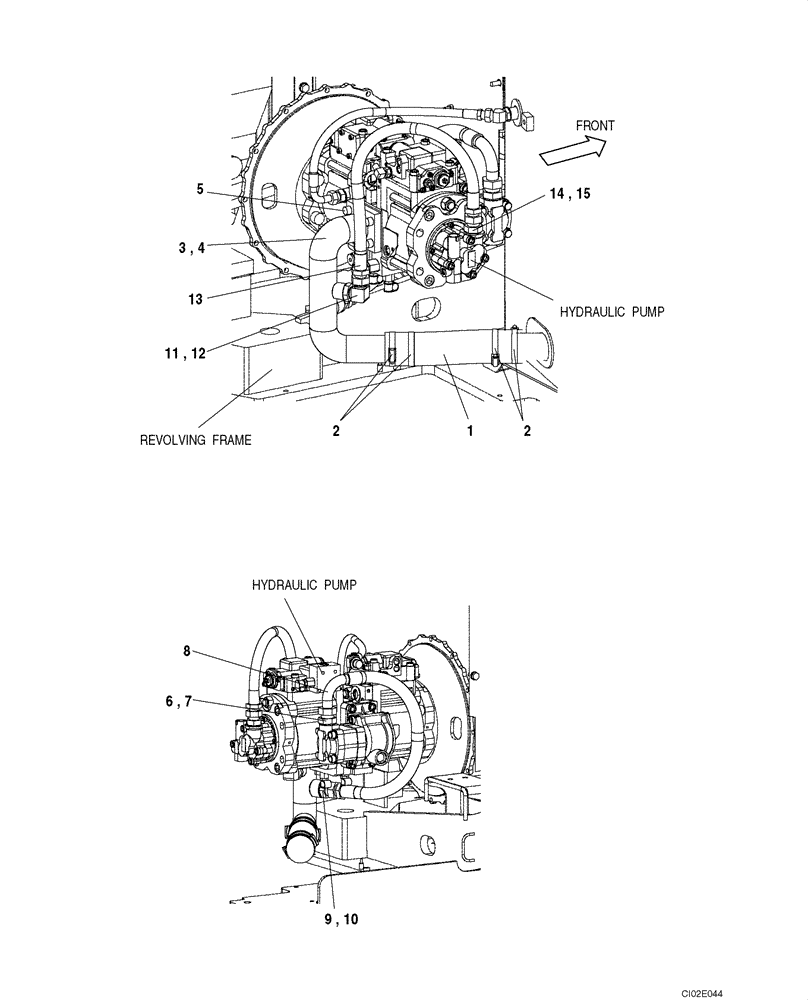

Запчасти Case CX135SR (08-006) - PUMP SUCTION LINE - MODELS WITH DOZER BLADE (08) - HYDRAULICS

1

KNJ0705

HOSE

1шт.

2

150893A1

CLAMP

4шт.

3

KMJ2962

TUBE ASSY.,52.9 mm ID x 60.5 mm OD

1шт.

4

154681A1

O-RING

1шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

6

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KMJ2259

HOSE ASSY.,25.40 mm ID x 770.00 mm

1шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 10

1шт.

10

154523A1

O-RING

1шт.

11

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 12

1шт.

12

154503A1

O-RING

1шт.

13

KRJ5869

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

14

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 15

1шт.

15

154503A1

O-RING

1шт.
