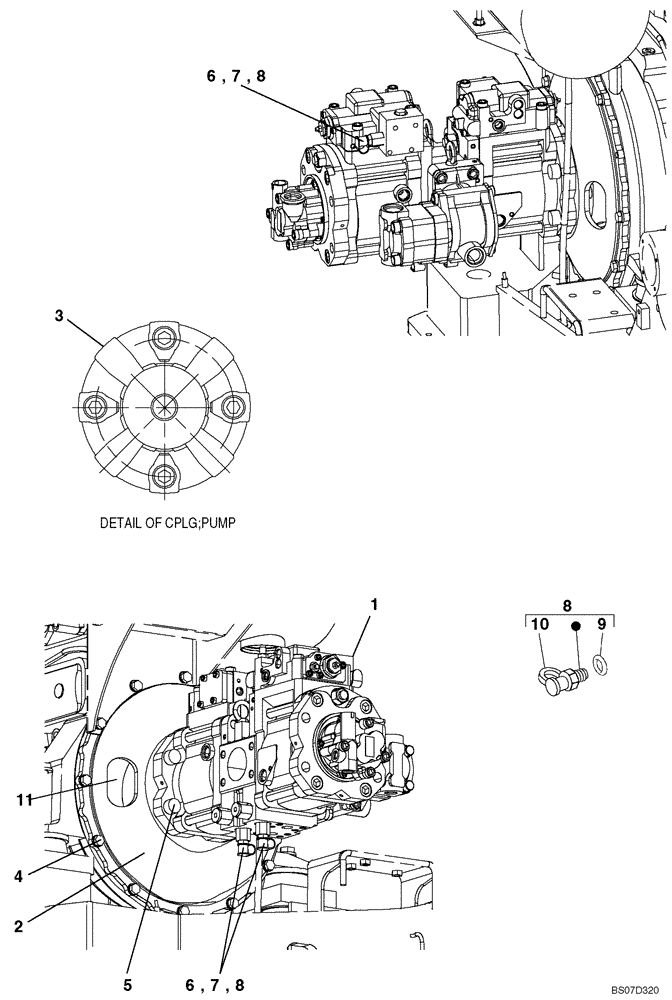

Запчасти Case CX135SR (08-004) - PUMP AND COUPLING - MODELS WITH DOZER BLADE (08) - HYDRAULICS

1

KMJ2937

HYDRAULIC PUMP

See Figure 08-62 - 08-65

1шт.

87341966

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341969

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

KNJ3027

FLANGE

1шт.

3

KMJ2660

COUPLING FLANGE

1шт.

4

166347A1

BOLT,Sems, M10 x 30mm

8шт.

5

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

6

KHJ2620

BUSHING

Incl. 7

3шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

1541849C1

COUPLING

Incl. 9, 10

3шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

H434163

DUST CAP

1шт.

11

KHJ2656

GROMMET

RUBBER

2шт.
