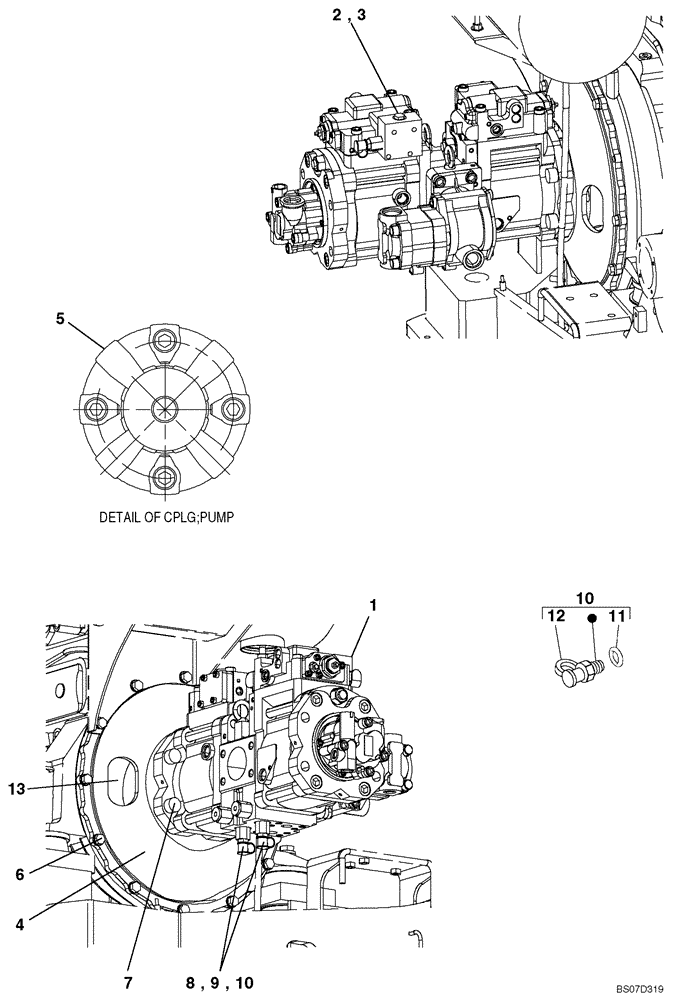

Запчасти Case CX135SR (08-003) - PUMP AND COUPLING - MODELS WITHOUT DOZER BLADE (08) - HYDRAULICS

1

KMJ2936

HYDRAULIC PUMP

See Figure 08-58 - 08-61

1шт.

87341960

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341962

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

159002A1

PLUG

Incl. 3

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KNJ3027

FLANGE

1шт.

5

KMJ2660

COUPLING FLANGE

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

8шт.

7

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

8

KHJ2620

BUSHING

Replaces 151136A1, Incl. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

1541849C1

COUPLING

Incl. 11, 12

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

H434163

DUST CAP

1шт.

13

KHJ2656

GROMMET

RUBBER

2шт.
