(06-01A) - TRACK DRIVE ASSY (P.I.N. DAC0813315 AND AFTER)

Запчасти Case CX135SR (06-01A) - TRACK DRIVE ASSY (P.I.N. DAC0813315 AND AFTER) (06) - POWER TRAIN

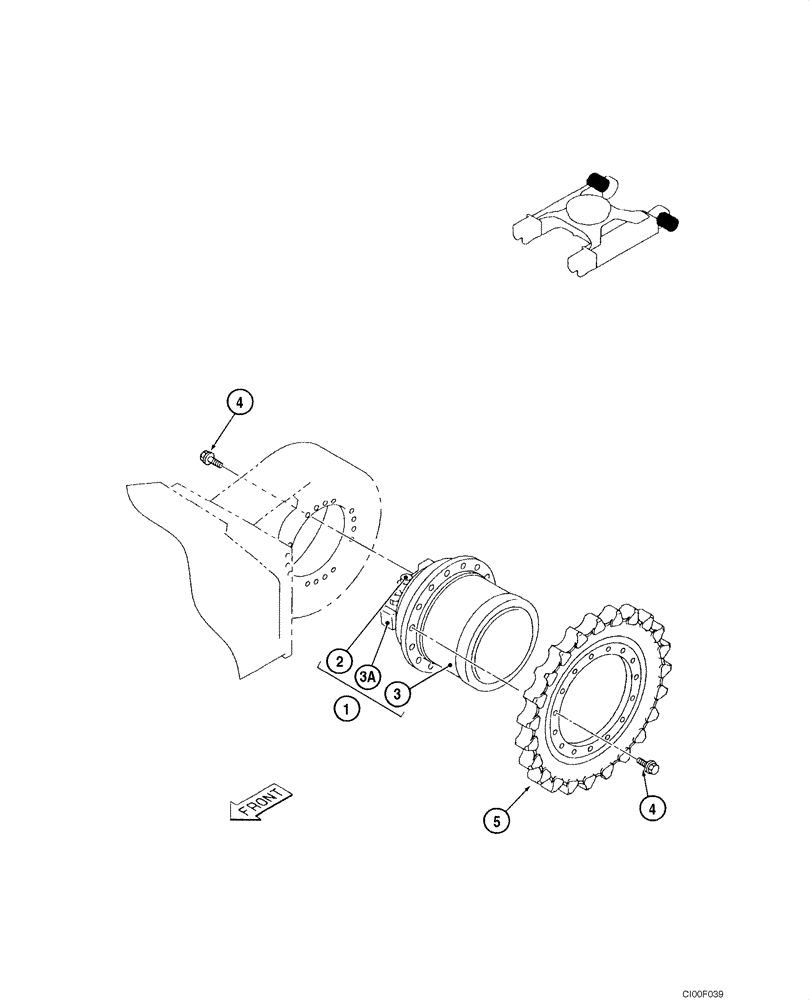

Схема запчастей Case CX135SR - (06-01A) - TRACK DRIVE ASSY (P.I.N. DAC0813315 AND AFTER) (06) - POWER TRAIN
1
4
3a
4
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNA10460

MOTO-REDUCTION GEAR

Incl. 2, 3, 3A

2шт.

2

LN00072

REDUCER

See Figure 06-02A, Replaces 164693A1

1шт.

3

LJ013420

HYDRAULIC MOTOR

Piston, See Figure 06-04A

1шт.

3a

LJ00785

VALVE

See Figure 06-05A

1шт.

4

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

62шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

62шт.

5

KMA1256

SPROCKET

2шт.
