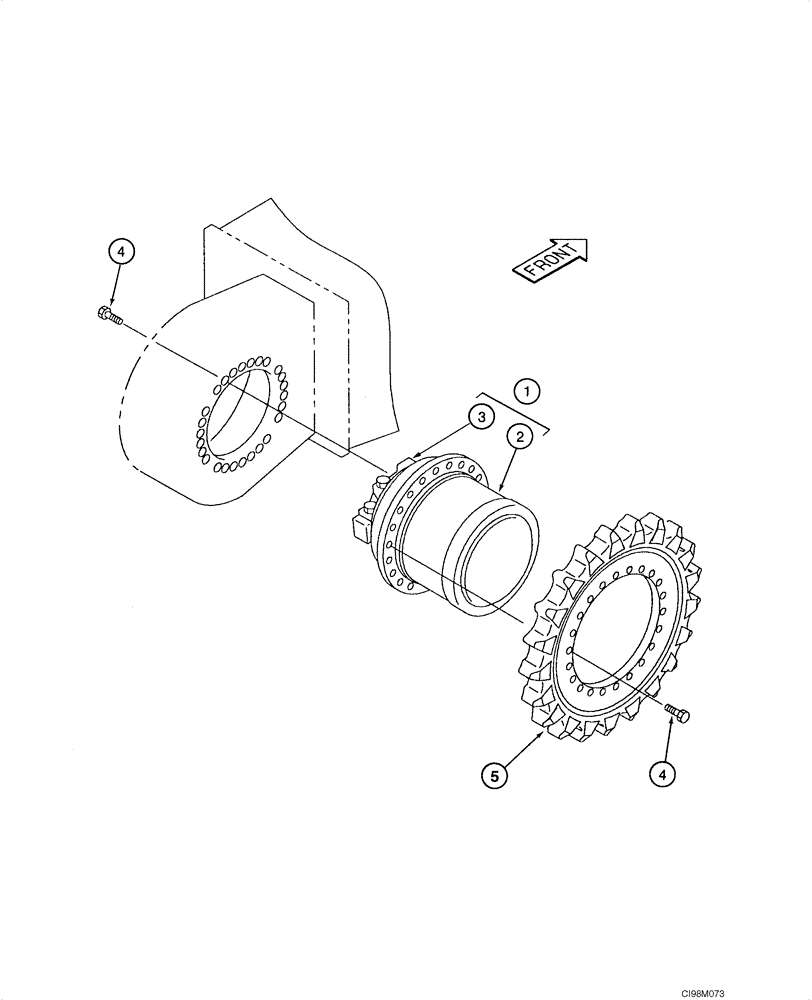

Запчасти Case CX135SR (06-01) - TRACK DRIVE ASSY (P.I.N. DAC0813101 - DAC0813314) (06) - POWER TRAIN

1

KMA1321

MOTO-REDUCTION GEAR

Incl. 2, 3, 3A

2шт.

2

LN00072

REDUCER

See Figure 06-02

1шт.

3

LJ00862

HYDRAULIC MOTOR

Piston, See Figure 06-03, 06-04

1шт.

3a

LJ00863

VALVE

Not Illustrated, See Figure 06-05

1шт.

4

166348A1

BOLT

62шт.

5

KNA0826

WHEEL GEAR

2шт.
