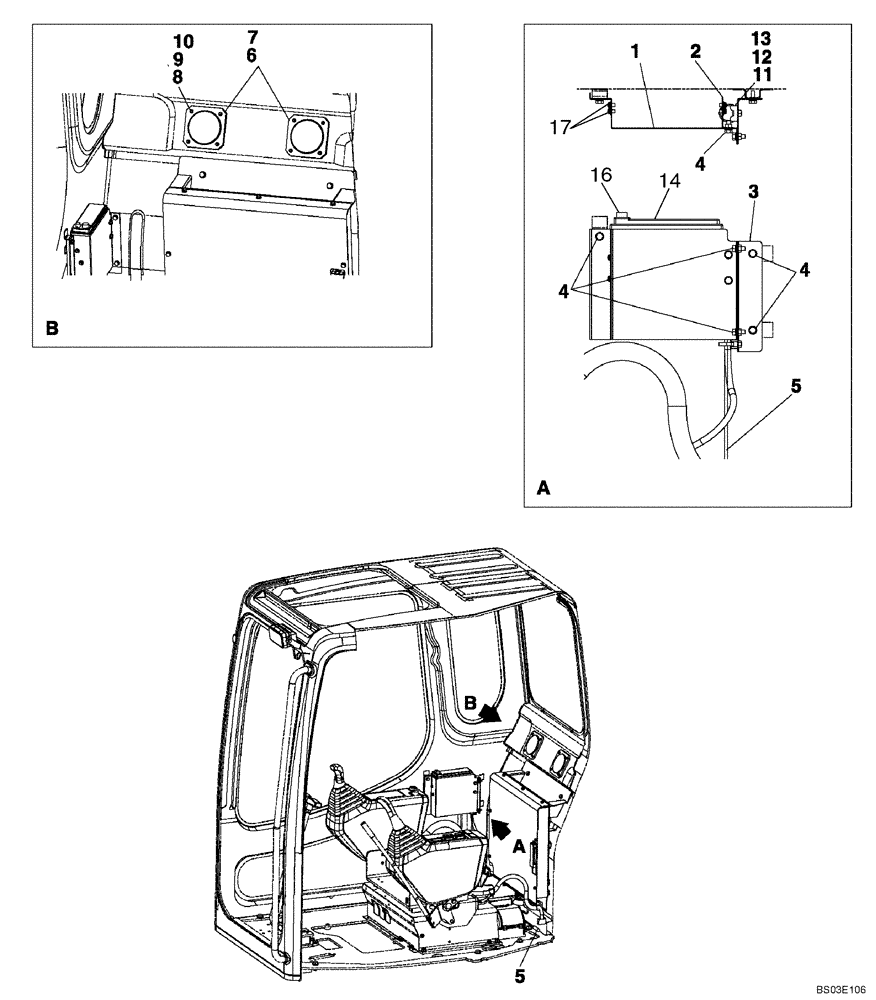

Запчасти Case CX135SR (04-06) - RADIO (04) - ELECTRICAL SYSTEMS

1

KHR4042

COVER

1шт.

2

KHR3908

BRACKET

1шт.

3

KHR3909

BRACKET

1шт.

4

KHN2132

BOLT,Hex Flg Hd, M6 x 16

7шт.

5

152500A1

CABLE ASSY.

Aerial

1шт.

6

KHR3366

SPEAKER

2шт.

7

KHR3364

GRILLE ASSY

2шт.

8

159947A1

SCREW,Phil Pan Head, M4 x 12mm

8шт.

9

160383A1

SPRING WASHER

8шт.

10

160384A1

WASHER

8шт.

11

150496A1

MOUNTING CLIP

1шт.

12

150860A1

COLLAR

1шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

14

KHR3134

RADIO

Incl. 15, 16; No Longer Available, Order KHR3945

1шт.

15

169348A1

SET OF PARTS

Not Illustrated

1шт.

16

169349A1

BUTTON

1шт.

17

162067A1

SCREW,M5 x 8mm

4шт.

18

KHR3945

RADIO

AM/FM, Incl. 19 - 21; Not IllustratedIf Used

1шт.

19

KHR3332

KNOB

Not Illustrated

1шт.

20

KHR3333

KNOB

Not Illustrated

1шт.

21

KHR2302

COVER

Cover Trim; Not Illustrated

1шт.

22

KHR16860

RADIO

Not Illustrated; If Used

1шт.
