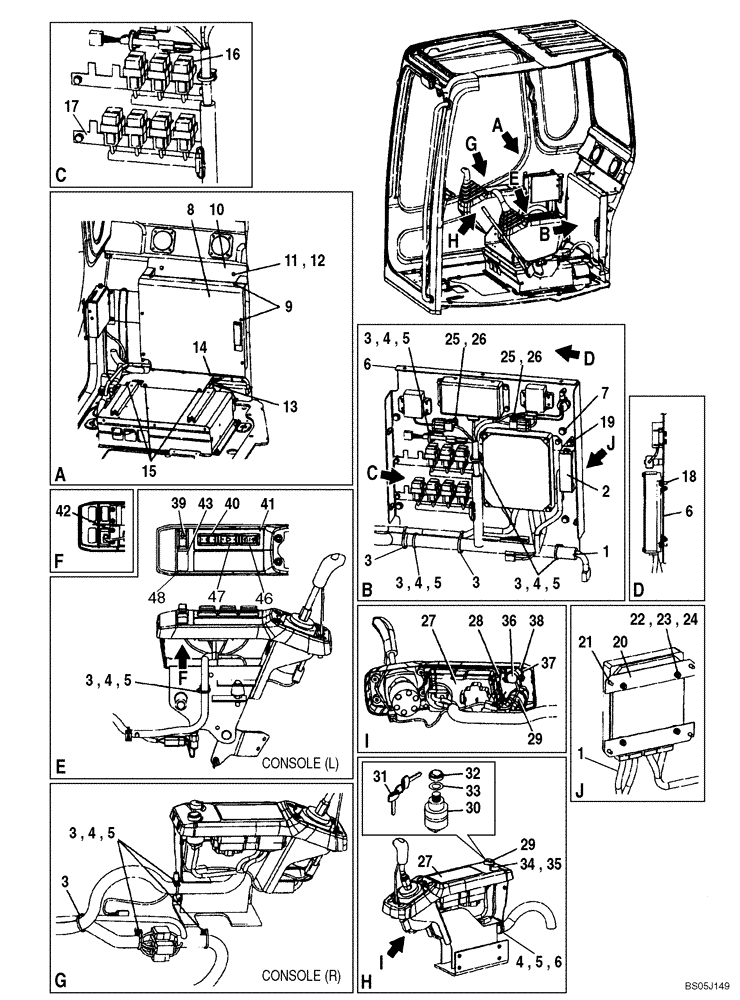

Запчасти Case CX135SR (04-05) - HARNESS - OPERATORS COMPARTMENT (04) - ELECTRICAL SYSTEMS

1

KHR18760

WIRE HARNESS

HARNESS, WIRE, Replaces KRR1571, KHR15810 Incl. 2

1шт.

2

NSS

NOT SOLD SEPARAT

Box, Fuse

1шт.

2a

231959A1

DIODE

Not Illustrated

1шт.

3

150496A1

MOUNTING CLIP

1шт.

4

150860A1

COLLAR

9шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

9шт.

6

KHR4015

BRACKET

1шт.

7

166345A1

BOLT

4шт.

8

KHR3903

COVER

1шт.

9

KHN2132

BOLT,Hex Flg Hd, M6 x 16

7шт.

10

KHR4043

COVER

Replaces KHR3904

1шт.

11

162571A1

BOLT,High Strength, M8 x 16mm

2шт.

12

159500A1

WASHER

2шт.

13

KHR3905

COVER

Rear

1шт.

14

KHN2132

BOLT,Hex Flg Hd, M6 x 16

6шт.

15

KHN0482

WASHER

3шт.

16

KHR3802

RELAY

8шт.

17

KHR3807

BRACKET

2шт.

18

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

19

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

20

KHR3808

BRACKET

2шт.

21

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

23

183-106VR

SPRING WASHER

4шт.

24

162R006SR

NUT

M6

4шт.

25

165405A1

CLIP

2шт.

26

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

27

KHR4104

INSTRUMENT PANEL

Replaces KHR3277

1шт.

27

KHR4104R

REMAN-INSTR CLUSTER

CX135SR CRAWLER EXCAVATOR (NORTH AMERICA) (8/02-)

1шт.

27

KHR4104C

CORE-CLUSTER, INSTR

Return Number

1шт.

28

KHR3806

SELF-TAP SCREW

4шт.

29

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Incl. 30 - 33, Replaces KHR3270

1шт.

30

KHR3078

IGNITION SWITCH

1шт.

31

KHR20070

IGNITION KEY

KEY CASE, Replaces 150979A1

2шт.

32

KHR3080

CAP

1шт.

33

KHR3081

WASHER

1шт.

34

KHR2750

KNOB

1шт.

35

KHR2741

PACKING

1шт.

36

KHR2751

SWITCH

THROTTLE VOLUME

1шт.

37

KHR3561

BRACKET

1шт.

38

KHR2737

SELF-TAP SCREW

2шт.

39

KHR3967

TOGGLE SWITCH

1шт.

40

KHR3886

SWITCH

1шт.

41

KHR3906

COVER

1шт.

42

KHR2737

SELF-TAP SCREW

1шт.

43

KMR0897

GROMMET

4шт.

44

KHR2501

SOCKET

Not Illustrated

1шт.

45

KHR2488

LIGHTER, CIGARETTE

Not Illustrated

1шт.

46

KHR3965

TOGGLE SWITCH

1шт.

47

KHR3196

SWITCH

Travel Alarm

1шт.

48

KHR3121

SWITCH

If Used

1шт.
