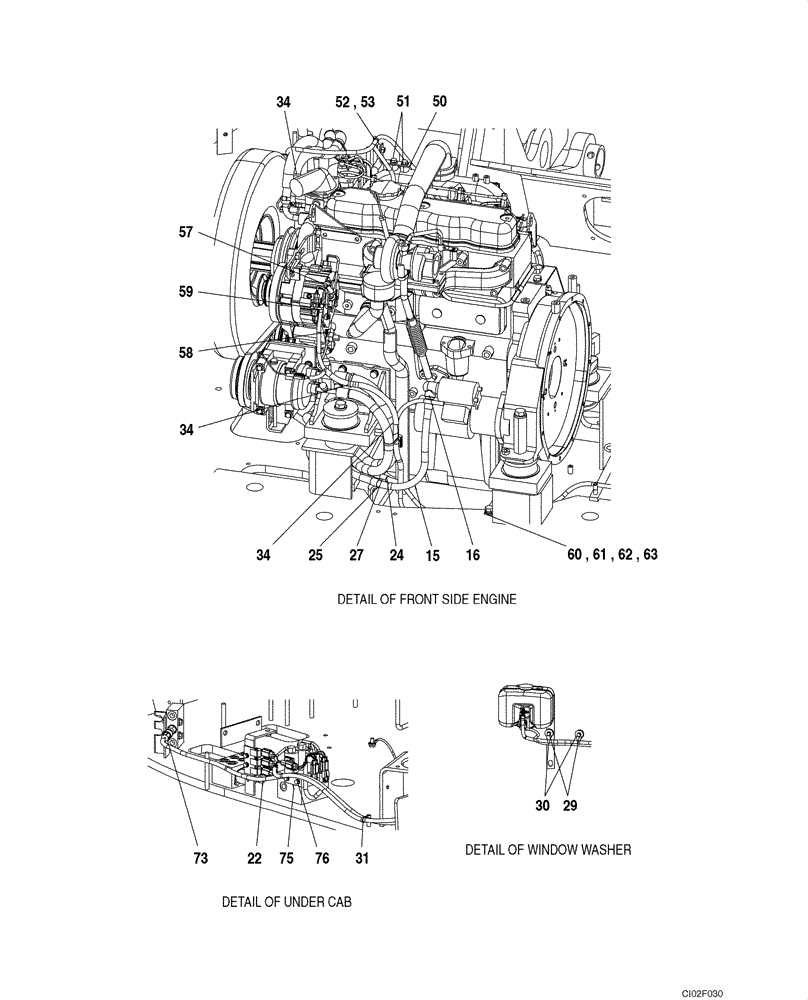

Запчасти Case CX135SR (04-04) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

15

KMR0869

ELECTRIC CABLE

1шт.

16

159184A1

CAP

1шт.

22

KMR0928

WIRE HARNESS

PIN DAC0812490 and Prior, Replaces KMR0845 And KMR0921

1шт.

22

KMR0990

WIRE HARNESS

PIN DAC0812491 and After

1шт.

24

157806A1

COLLAR

1шт.

25

156462A1

COLLAR

1шт.

27

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

29

KHR2583

CLAMP

2шт.

30

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

31

KHR2787

CLAMP

1шт.

34

150496A1

MOUNTING CLIP

1шт.

50

KNR0607

BRACKET

1шт.

51

166345A1

BOLT

2шт.

52

KHR2584

CLAMP

1шт.

53

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

57

159174A1

CAP

1шт.

58

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

59

150496A1

MOUNTING CLIP

1шт.

60

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

61

183-112VR

SPRING WASHER

1шт.

62

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

63

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

73

159599A1

PRESSURE SWITCH

Oil Pressure

1шт.

75

KMR0891

BRACKET

1шт.

76

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.
