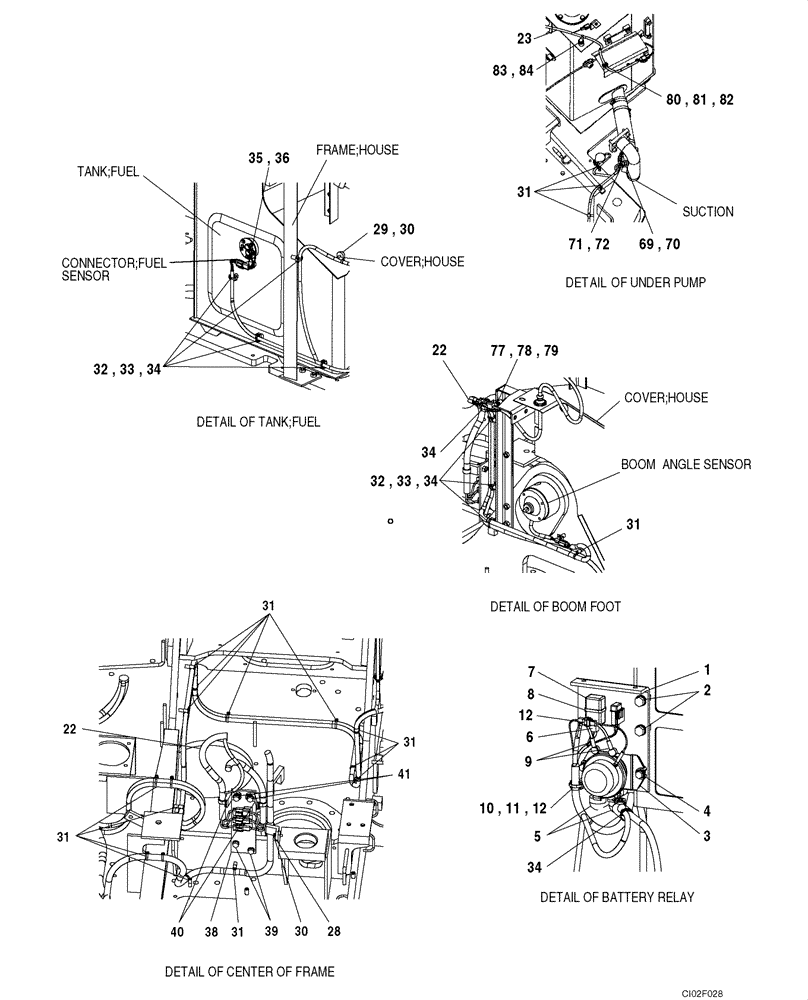

Запчасти Case CX135SR (04-02) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KMR0867

BULB

1шт.

2

166052A1

BOLT

2шт.

3

159897A1

RELAY

1шт.

4

KHJ1215

BOLT,Spcl

2шт.

5

162212A1

TERMINAL CONNECTOR

2шт.

6

159902A1

FUSE

65A fuse - starter

1шт.

7

159904A1

COVER

1шт.

8

150067A1

MOUNTING CLIP

1шт.

9

159171A1

CAP

2шт.

10

150860A1

COLLAR

1шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

12

150496A1

MOUNTING CLIP

2шт.

22

KMR0928

WIRE HARNESS

PIN DAC0812490 and Prior, Replaces KMR0845 And KMR0921

1шт.

22

KMR0990

WIRE HARNESS

PIN DAC0812491 and After

1шт.

23

KMR10180

WIRE HARNESS

Replaces KMR0912

1шт.

28

KHR2580

CLAMP

1шт.

29

KHR2583

CLAMP

1шт.

30

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

31

KHR2787

CLAMP

17шт.

32

150860A1

COLLAR

7шт.

33

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

34

150496A1

MOUNTING CLIP

9шт.

35

165405A1

CLIP

1шт.

36

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

38

158376A1

BRACKET

1шт.

39

166347A1

BOLT,Sems, M10 x 30mm

2шт.

40

KHR2582

CLAMP

2шт.

41

KHJ2298

BOLT,Spcl

2шт.

69

163658A1

THERMOSTATIC SWITCH

Oil Temperature

1шт.

70

159901A1

SEALING WASHER

1шт.

71

165405A1

CLIP

1шт.

72

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

77

150860A1

COLLAR

1шт.

78

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

79

150496A1

MOUNTING CLIP

1шт.

80

150860A1

COLLAR

1шт.

81

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

82

150496A1

MOUNTING CLIP

1шт.

83

KHR2585

CLAMP

1шт.

84

KHJ2298

BOLT,Spcl

1шт.
