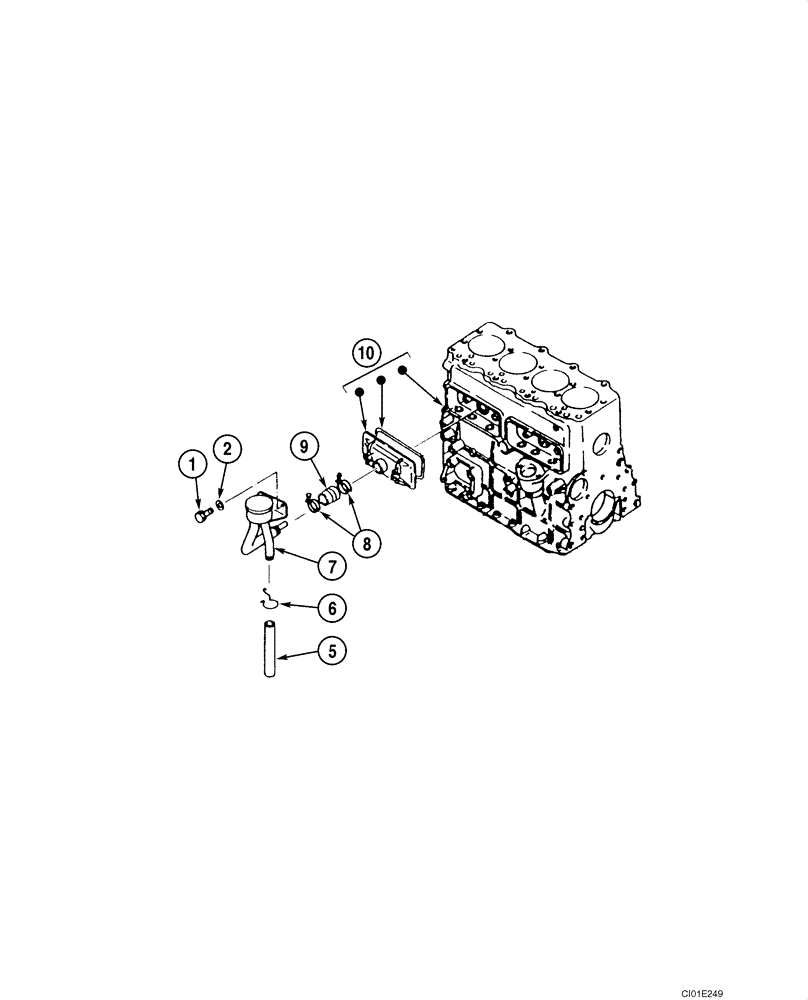

Запчасти Case CX135SR (02-22) - CYLINDER BLOCK - BREATHER (02) - ENGINE

1

288983A1

BOLT

M8 x 12

2шт.

2

289794A1

WASHER

2шт.

5

288792A1

PIPE ASSY.

1шт.

6

289425A1

CLIP

1шт.

7

418905A1

BREATHER

1шт.

8

288858A1

COLLAR CLAMP

1шт.

8

288715A1

CLIP

1шт.

9

288835A1

LARGE HOSE

HOSE,LARGE

1шт.

10

288821A1

COVER

Block, Cylinder, See Figure 02-26

1шт.

10

289648A1

PACKING

1шт.
