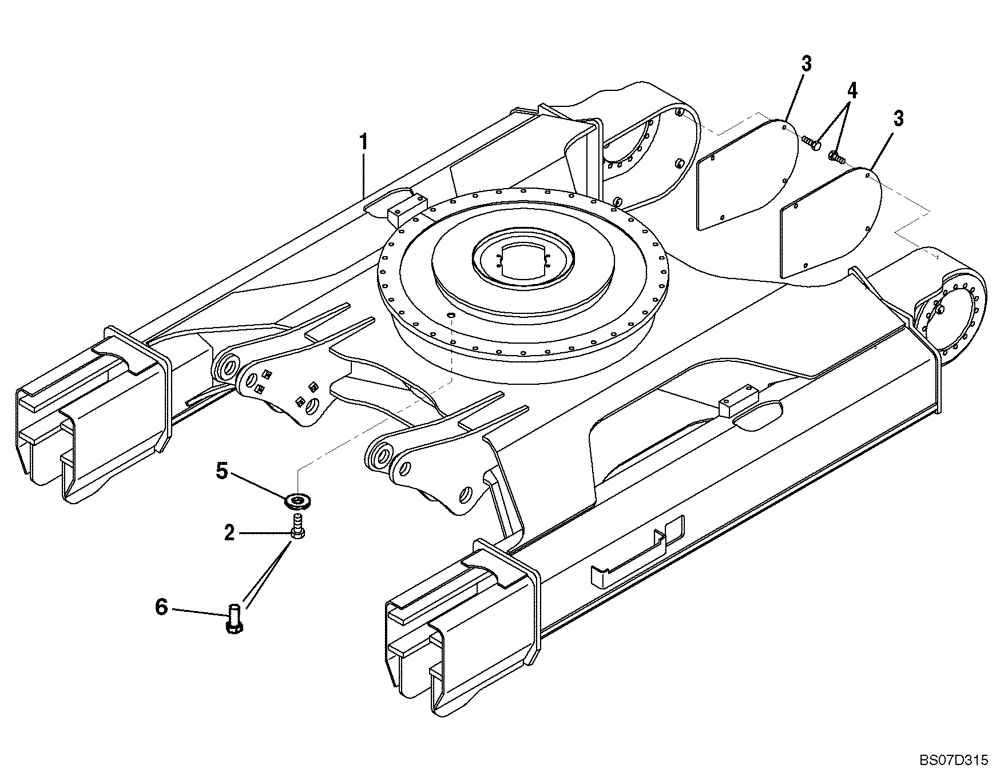

Запчасти Case CX135SR (05-01) - UNDERCARRIAGE (11) - TRACKS/STEERING

1

KMA1355

FRAME

Models With Dozer Blade; Replaces KMA1330 & KMA1346

1шт.

1

KMA1354

FRAME

Models Without Dozer Blade; Replaces KMA1331 & KMA1345

1шт.

2

102R024Y040R

BOLT

1шт.

3

KMA1307

COVER

2шт.

4

KHN3009

BOLT,Spcl

8шт.

5

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

; No Longer Used

1шт.

6

157221A1

PLUG

1шт.
