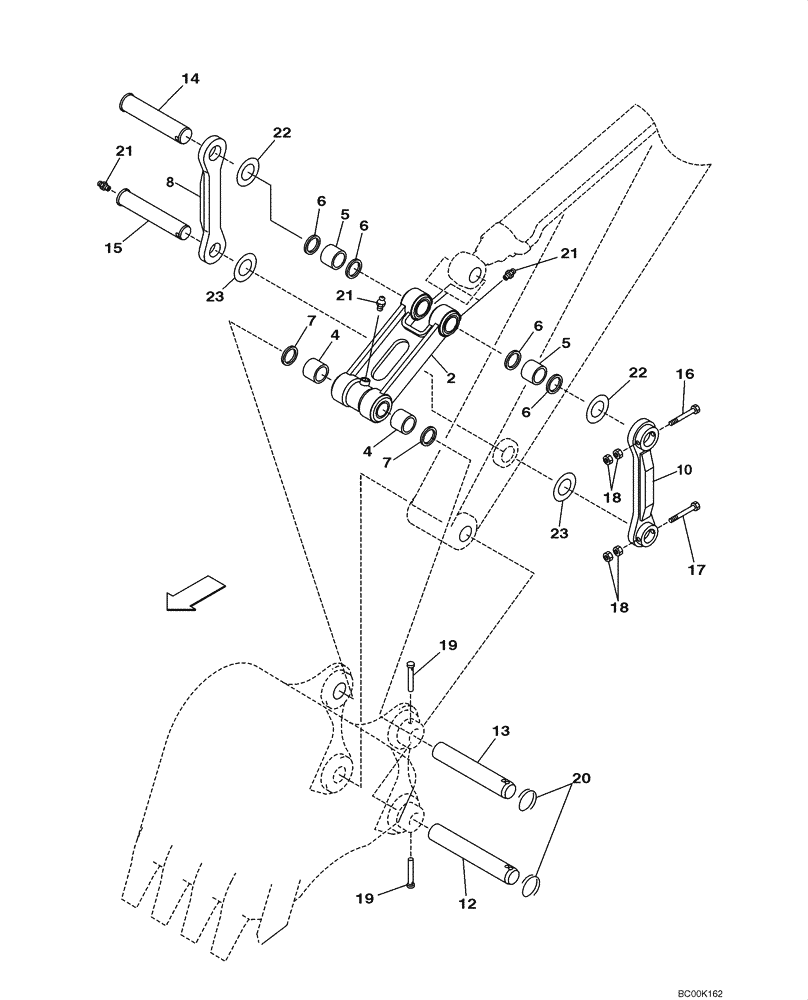

Запчасти Case CX135SR (09-51) - BUCKET LINKAGE, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

KNV1438

POWER ARM

Bucket, Heavy Duty, Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Bucket

1шт.

4

160724A1

BUSHING,65mm ID x 80mm OD x 65mm L

2шт.

5

150123A1

BUSHING,70mm ID x 85mm OD x 70mm L

2шт.

6

161295A1

SEAL,70mm ID x 85mm OD x 5mm Thk

4шт.

7

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

2шт.

8

KNV1476

LINKAGE YOKE

1шт.

10

KNV1475

LINKAGE YOKE

1шт.

12

169278A1

PIN,65mm OD x 452mm L

1шт.

13

169279A1

PIN,65mm OD x 418mm L

1шт.

14

KNV1456

PIN

1шт.

15

KNV1265

PIN

1шт.

16

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

1шт.

17

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

Replaces 514-1111

1шт.

18

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

19

153703A1

HEADED PIN,16mm OD x 102mm L

2шт.

20

153639A1

RING

2шт.

21

153630A1

LUBE NIPPLE

4шт.

22

150502A1

SHIM,71mm ID x 135mm OD x 1.2mm Thk

2шт.

23

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

2шт.
