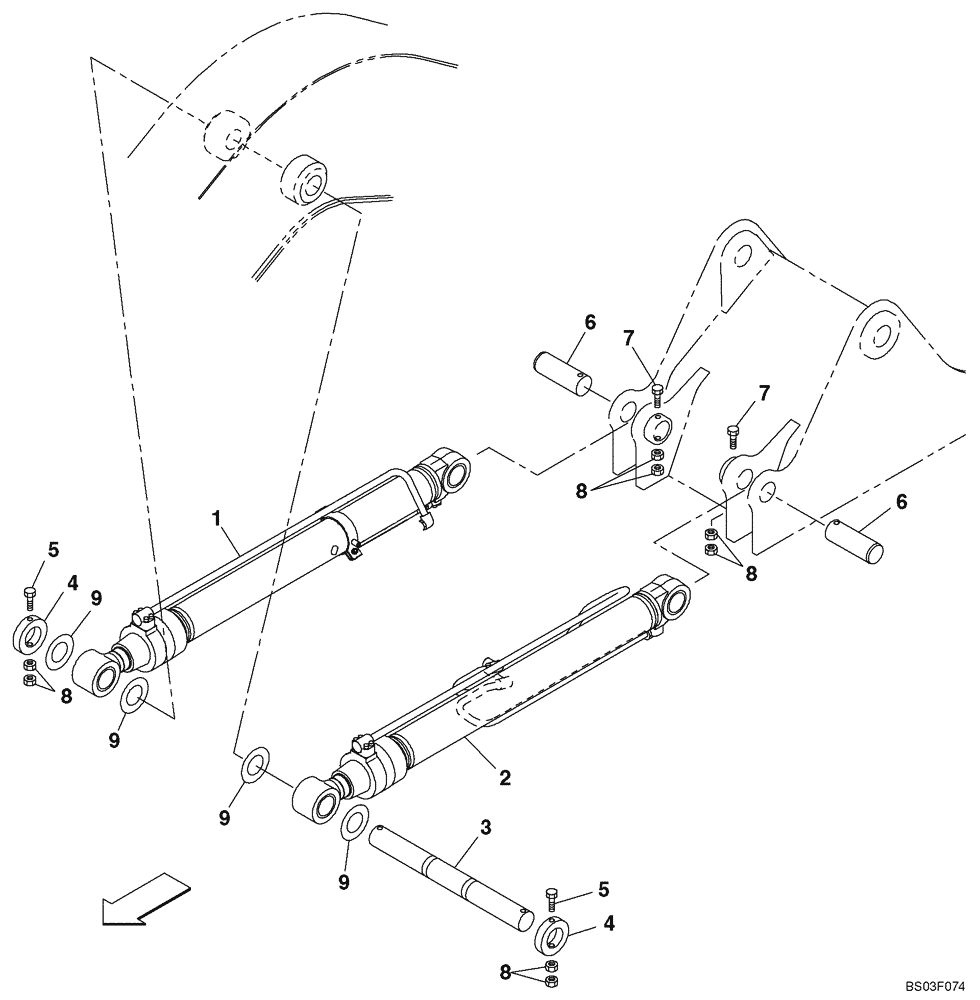

Запчасти Case CX135SR (09-42) - BOOM CYLINDER, MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KMV2542

HYDRAULIC CYLINDER

Boom, Right-Hand, Models Without Load Hold; See Figure 08-101

1шт.

1

KMV2546

HYDRAULIC CYLINDER

Boom, Right-Hand, Models With Load Hold; See Figure 08-103

1шт.

2

KMV2543

HYDRAULIC CYLINDER

Boom, Left-Hand, Models Without Load Hold; See Figure 08-102

1шт.

2

KMV2547

HYDRAULIC CYLINDER

Boom, Left-Hand, Models With Load Hold; See Figure 08-104

1шт.

3

KNV1266

PIN

1шт.

4

KNV1247

RING, LOCKING

RING, LOCK

2шт.

5

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

2шт.

6

KNV1267

PIN

2шт.

7

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

2шт.

8

829-13416

NUT,M16 x 1.5, Cl 10

8шт.

9

160745A1

ADJUSTING PLATE

1шт.
