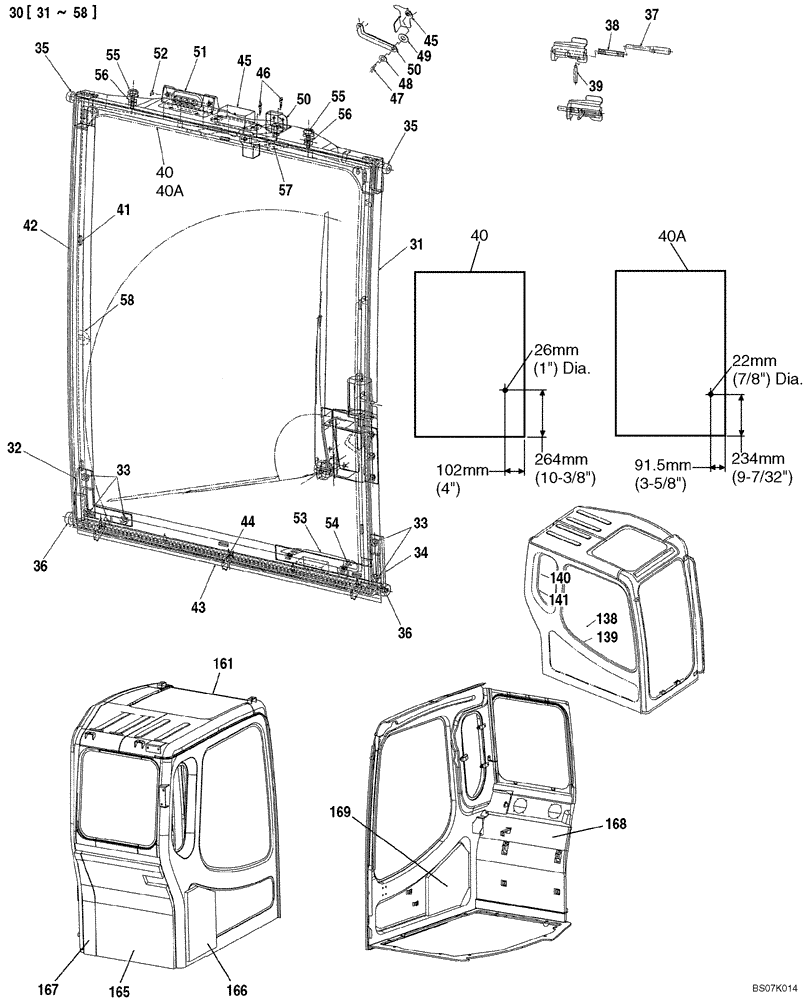

Запчасти Case CX135SR (09-26) - CAB - WINDOW, FRONT (09) - CHASSIS/ATTACHMENTS

30

KHN3035

WINDOW ASSY

Incl. 31 - 58

1шт.

31

KHN3109

WINDOW FRAME

1шт.

32

KHN3110

GUSSET

1шт.

33

KAN2606

SCREW

5шт.

34

KHN3111

GUSSET

1шт.

35

KHN3112

ROLLER

2шт.

36

KHN3113

ROLLER

2шт.

37

KAN2658

PIN

1шт.

38

KAN2659

SPRING

1шт.

39

KAN2660

LEVER

1шт.

40

KHN3114

WINDSHIELD

, Serial Range: DAC0813101-DAC0813176

1шт.

40

KHN3114

WINDSHIELD

, Serial Range: DAC151177-DAC151567

1шт.

40a

KHN18660

WINDSHIELD

WINDSHIELD, Serial Range: DAC151568-DAC151614

1шт.

41

KAN2662

SPACER

10шт.

42

KHN3115

SEAL

1шт.

43

KHN3116

RUBBER SEAL

1шт.

44

KHN3117

NUT

5шт.

45

KAN2665

LOCK

1шт.

46

KAN1514

SCREW

6шт.

47

KAN2666

BOLT,Spcl

1шт.

48

KAN2667

WASHER

1шт.

49

KAN2668

WASHER

1шт.

50

KHN3118

LOCK

1шт.

51

KAN2786

SWITCH

1шт.

52

KAN2626

SCREW

2шт.

53

KAN2670

HANDLE

2шт.

54

KHN3119

SCREW,Spcl

4шт.

55

KHN3156

PIN

2шт.

56

KAN2608

NUT

2шт.

57

KHN3120

FOAM INSULATION

1шт.

58

KHN3150

SEAL

1шт.

138

KHN3079

GLASS

1шт.

139

KHN3080

RUBBER SEAL

1шт.

140

KHN3081

GLASS

1шт.

141

KHN3082

RUBBER SEAL

1шт.

161

KHN3142

CAB BODY

1шт.

165

KMN1806

FOAM INSULATION

1шт.

166

KMN1807

FOAM INSULATION

1шт.

167

KMN1808

SEAL PROTECTION

1шт.

168

KHN19110

NOISE PROTECTION

Replaces KHN3262

1шт.

169

KHN3020

FOAM INSULATION

1шт.

170

KHN3332

VISOR, SUN

Not Illustrated

1шт.

171

KHN3333

SCREW,Spcl

Not Illustrated

4шт.

175

KHN3355

MAGNET

4шт.
