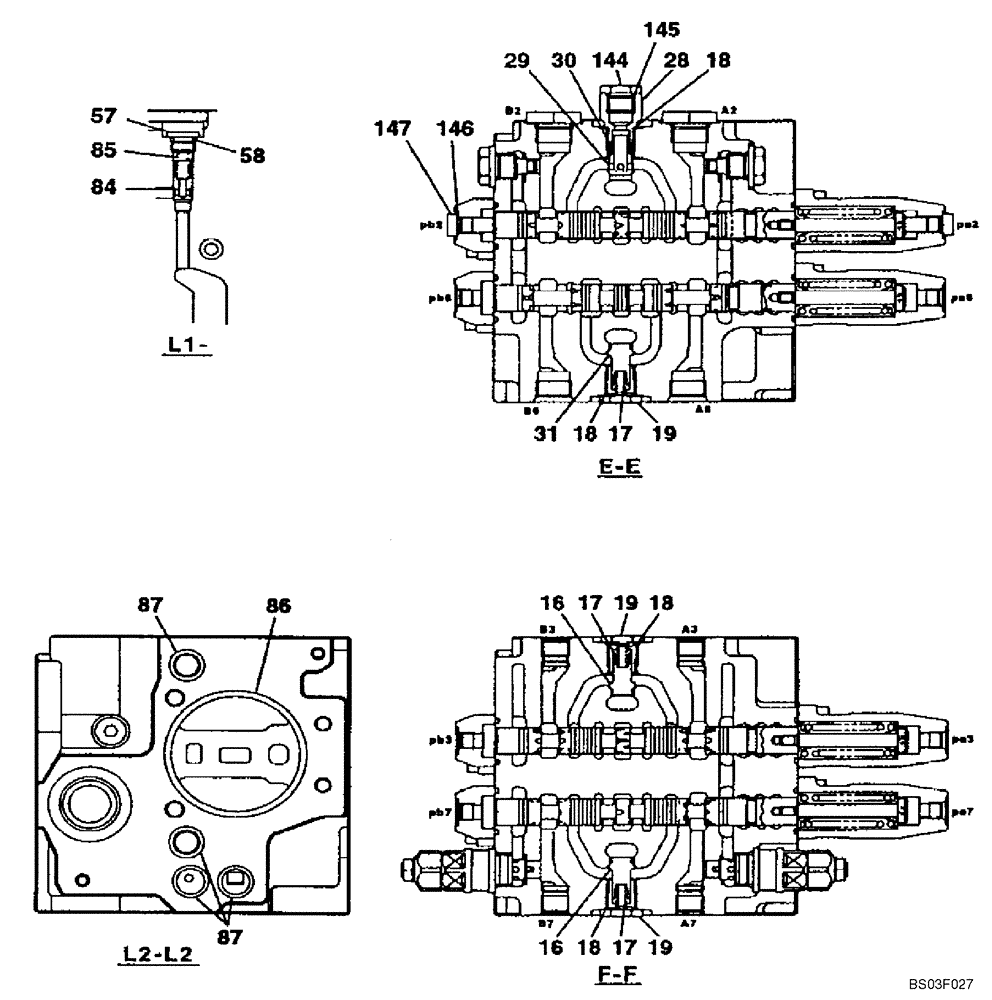

Запчасти Case CX135SR (08-086) - KMJ2956 VALVE ASSY, CONTROL - MODELS WITH DOZER BLADE (08) - HYDRAULICS

KMJ2956

CONTROL VALVE

Includes Parts On Figure(s) 08-83 - 08-89

1шт.

16

LJ00997

POPPET

2шт.

17

156026A1

SPRING

3шт.

18

155222A1

O-RING

4шт.

19

155464A1

PLUG

3шт.

28

LK00407

PLUG

1шт.

29

LJ00998

POPPET

1шт.

30

LG00445

COMPRESSION SPRING

1шт.

31

LJ00999

POPPET

1шт.

57

163369A1

PLUG

Incl. 58

1шт.

58

154475A1

O-RING

1шт.

84

LJ00726

VALVE POPPET

1шт.

85

LG00340

SPRING

1шт.

86

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

87

LE00777

O-RING,21.8mm ID x 2.4mm Width

4шт.

144

LLC0075

PLUG

Incl. 145

1шт.

145

154487A1

O-RING

1шт.

146

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

147

LK00301

PLUG

2шт.
