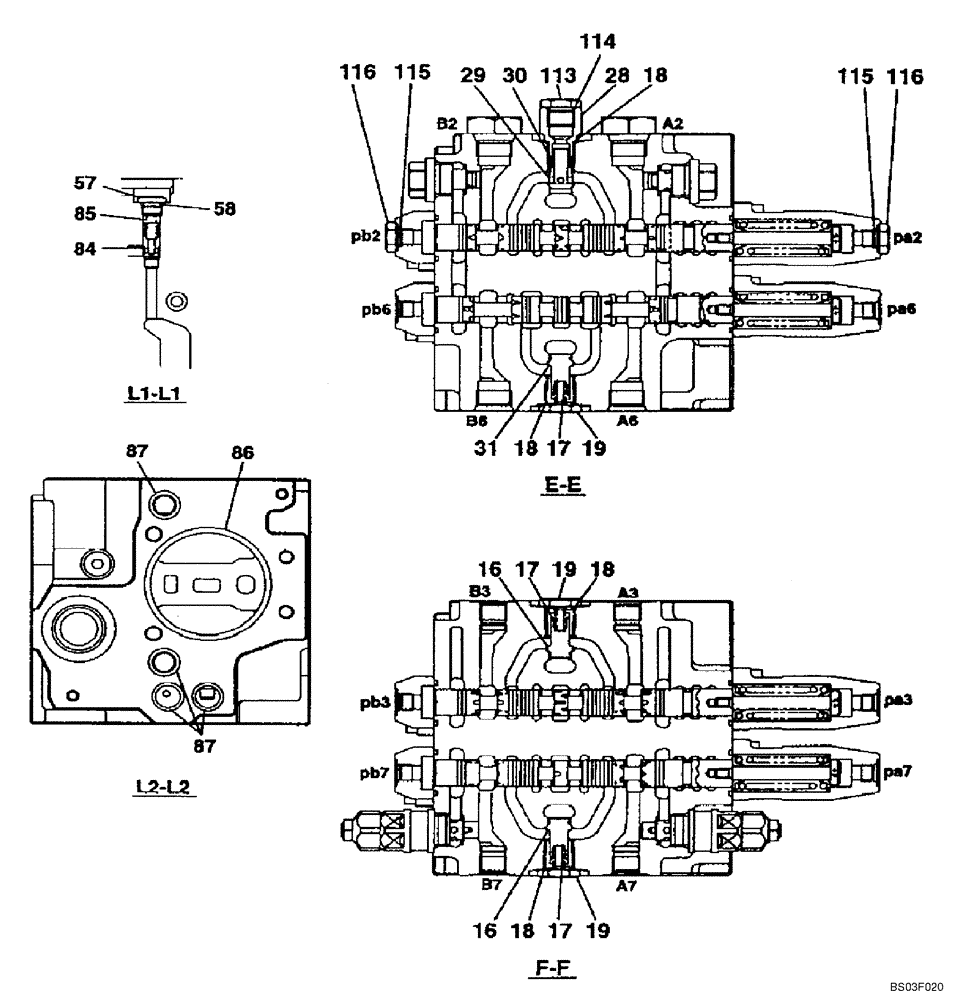

Запчасти Case CX135SR (08-079) - KMJ2633 VALVE ASSY, CONTROL - MODELS WITHOUT DOZER BLADE (08) - HYDRAULICS

KMJ2633

CONTROL VALVE

Includes Parts On Figure(s) 08-76 - 08-82

1шт.

16

LJ00997

POPPET

2шт.

17

156026A1

SPRING

3шт.

18

155222A1

O-RING

3шт.

19

155464A1

PLUG

3шт.

28

LK00407

PLUG

1шт.

29

LJ00998

POPPET

1шт.

30

LG00478

COMPRESSION SPRING

1шт.

31

LJ00999

POPPET

1шт.

57

163369A1

PLUG

Incl. 58

1шт.

58

154475A1

O-RING

1шт.

84

LJ00726

VALVE POPPET

1шт.

85

LG00340

SPRING

1шт.

86

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

87

LE00777

O-RING,21.8mm ID x 2.4mm Width

4шт.

113

LLC0075

PLUG

Incl. 114

1шт.

114

154487A1

O-RING

1шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

116

LK00301

PLUG

2шт.
