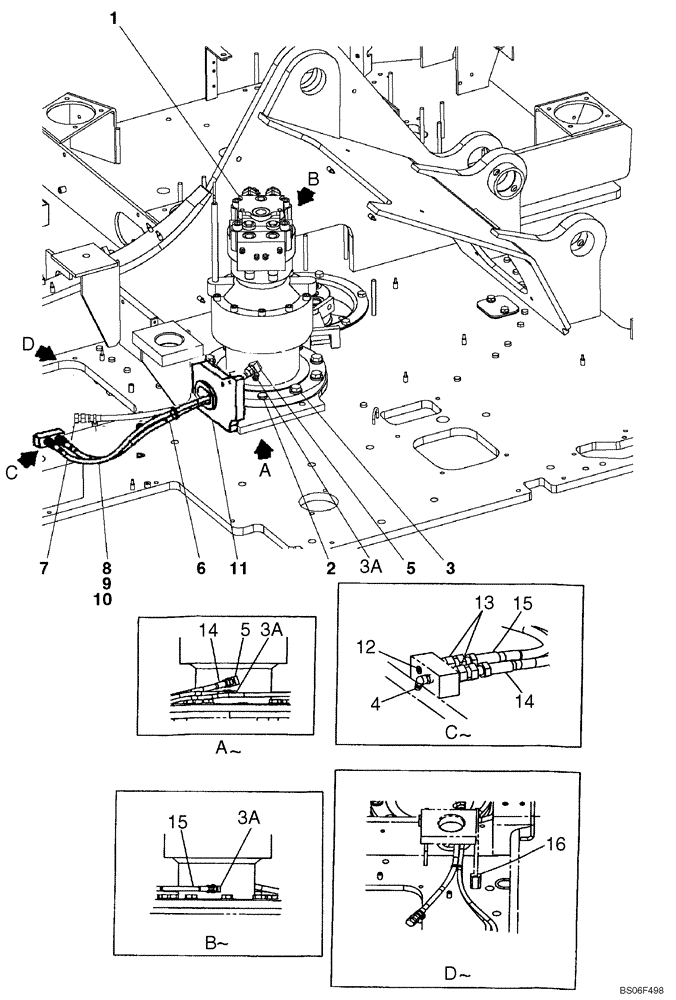

Запчасти Case CX135SR (08-066) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

1

KMC0093

MOTO-REDUCTION GEAR

See Figure 08-67 - 08-69

1шт.

2

150036A1

HEADED PIN,20mm OD x 60mm L

1шт.

3

167584A1

BOLT,Sems, M16 x 60mm

9шт.

3a

153599A1

ADAPTER

2шт.

4

153631A1

LUBE NIPPLE,1/8"-27 NPT

Grease; Replaces M01X0813

1шт.

5

KHJ0683

ELBOW

1шт.

6

KMJ2036

HOSE ASSY.,9.50 mm ID x 500.00 mm

1шт.

7

KHP0501

PLUG

1шт.

8

150860A1

COLLAR

1шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

10

150496A1

MOUNTING CLIP

1шт.

11

KMJ3056

GASKET

Replaces KMJ2831

1шт.

12

158352A1

PLUG

1шт.

13

KRJ4050

ADAPTER

2шт.

14

167866A1

HYDRAULIC HOSE,6.30 mm ID x 700.00 mm

1шт.

15

167663A1

HYDRAULIC HOSE,6.30 mm ID x 1100.00 mm

1шт.

16

KRJ6210

PROTECTOR

1шт.
