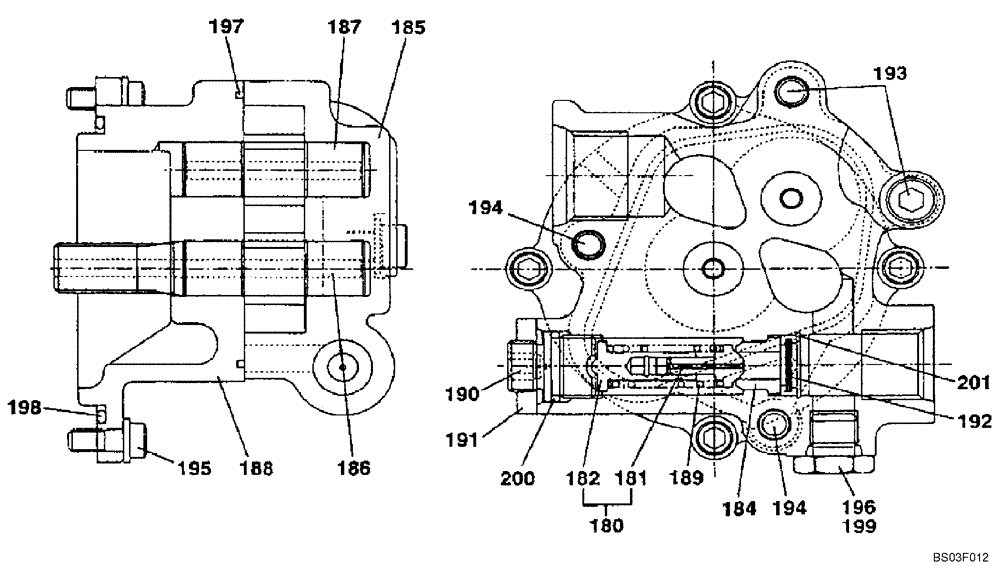

Запчасти Case CX135SR (08-061) - KMJ2936 PUMP ASSY, HYDRAULIC - GEAR PUMP DRIVE, MODELS WITHOUT DOZER BLADE (08) - HYDRAULICS

KMJ2936

HYDRAULIC PUMP

Models Without Dozer Blade; Includes All Parts on Figure 08-58 - 08-61

1шт.

87341960

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341962

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

LJ01072

HYDRAULIC PUMP

Gear; Incl. 180 - 201

1шт.

180

LNP0221

VALVE POPPET

Gear; Incl. 181, 182

1шт.

181

NSS

NOT SOLD SEPARAT

Poppet

1шт.

182

NSS

NOT SOLD SEPARAT

Seat

1шт.

LC00229

GEAR

Incl. 184 - 188

1шт.

184

NSS

NOT SOLD SEPARAT

Seat

1шт.

185

NSS

NOT SOLD SEPARAT

Housing, Gear

1шт.

186

NSS

NOT SOLD SEPARAT

Gear

4шт.

187

NSS

NOT SOLD SEPARAT

Gear

1шт.

188

NSS

NOT SOLD SEPARAT

Housing

2шт.

189

160593A1

SPRING

1шт.

190

LV00027

SCREW,Spcl

1шт.

191

163662A1

LOCK NUT

1шт.

192

163663A1

FILTER

4шт.

193

163664A1

FLANGE BOLT,Hex Skt, M8 x 50mm

1шт.

194

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

1шт.

195

LA00872

BOLT,Spcl

1шт.

196

155496A1

PLUG

1шт.

197

163667A1

SEALING RING

2шт.

198

154697A1

O-RING

4шт.

199

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

200

154483A1

O-RING

1шт.

201

163668A1

RING, LOCKING

RING, LOCK

1шт.
