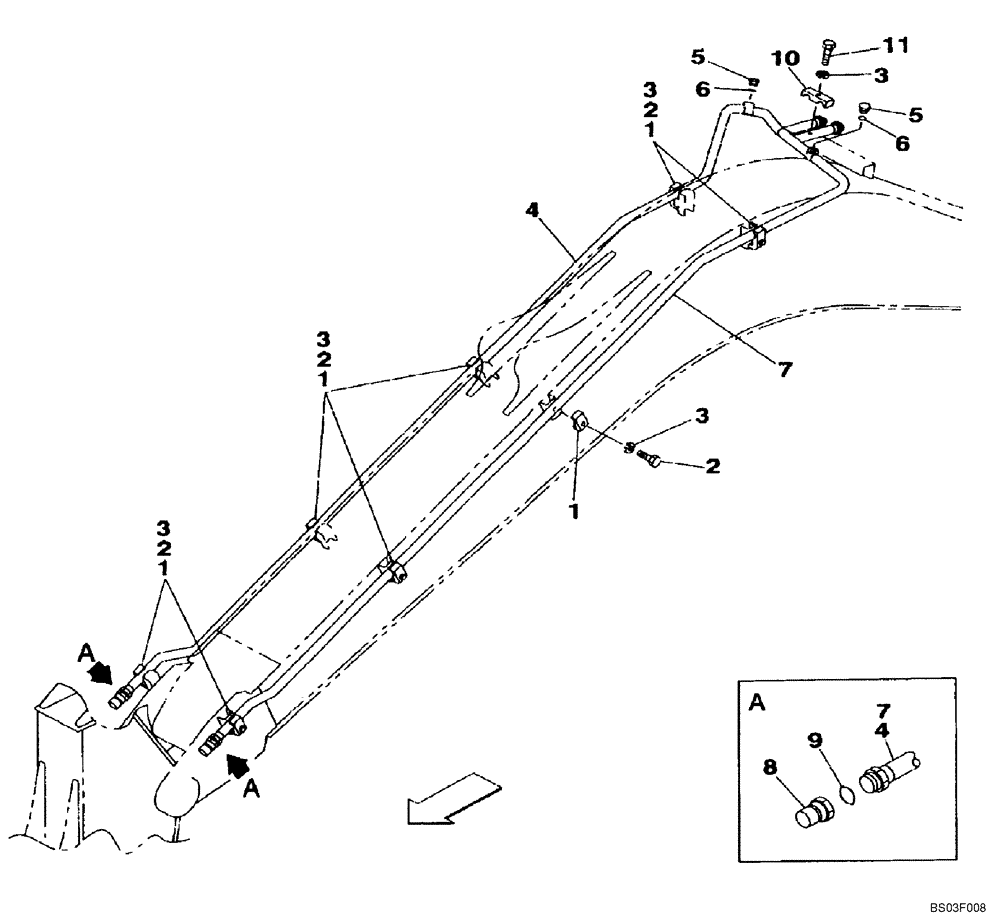

Запчасти Case CX135SR (08-057) - HYDRAULICS, AUXILIARY ATTACHMENT - BOOM LINE (08) - HYDRAULICS

1

153731A1

SPECIAL CLAMP

8шт.

2

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

8шт.

3

892-11012

LOCK WASHER,M12

9шт.

4

KMV2748

HYD TUBE,26 mm ID x 34 mm OD

1шт.

5

152924A1

PLUG

Incl. 6

2шт.

6

154503A1

O-RING

1шт.

7

KMV2677

HYD TUBE

1шт.

8

KHJ1899

PLUG

2шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

10

162308A1

COLLAR

1шт.

11

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.
