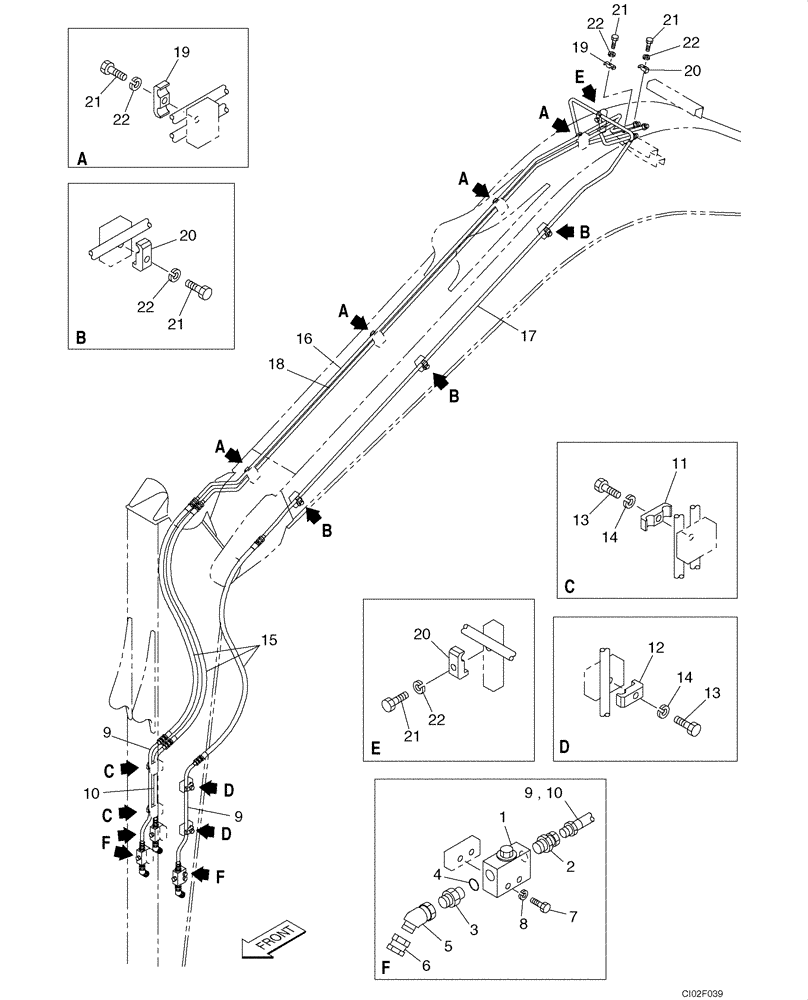

Запчасти Case CX135SR (08-056) - HYDRAULICS, AUXILIARY - SECOND OPTION LINE (08) - HYDRAULICS

1

KHV10670

VALVE SECTION

Replaces KHV0391

3шт.

2

KHJ1940

ADAPTER

3шт.

3

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 4

3шт.

4

154487A1

O-RING

1шт.

5

KHV0487

ELBOW

3шт.

6

158841A1

PLUG

3шт.

7

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

8

892-11010

LOCK WASHER,M10

6шт.

9

KMV2718

HYD TUBE,12.7 mm ID x 17.3 mm OD

2.40 M (7 Ft 10 In) Arm

2шт.

9

KMV2709

HYD TUBE,12.7 mm ID x 17.3 mm OD

2.85 M (9 Ft. 4 In) Arm

2шт.

10

KMV2719

HYD TUBE,12.7 mm ID x 17.3 mm OD

2.40 M (7 Ft 10 In) Arm

1шт.

10

KMV2710

HYD TUBE,12.7 mm ID x 17.3 mm OD

2.85 M (9 Ft. 4 In) Arm

1шт.

11

168551A1

COLLAR

2шт.

12

169149A1

COLLAR

2шт.

13

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

14

183-112VR

SPRING WASHER

4шт.

15

KMV2720

HOSE ASSY.,12.70 mm ID x 1300.00 mm

2.40 M (7 Ft 10 In) Arm

3шт.

15

KMV2711

HOSE ASSY.,12.70 mm ID x 1650.00 mm

2.85 M (9 Ft. 4 In) Arm

3шт.

16

KMV2707

HYD TUBE,12.7 mm ID x 17.3 mm OD

1шт.

17

KMV2706

HYD TUBE,12.7 mm ID x 17.3 mm OD

1шт.

18

KMV2708

HYD TUBE,12.7 mm ID x 17.3 mm OD

1шт.

19

168551A1

COLLAR

5шт.

20

169149A1

COLLAR

5шт.

21

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

10шт.

22

183-112VR

SPRING WASHER

10шт.
