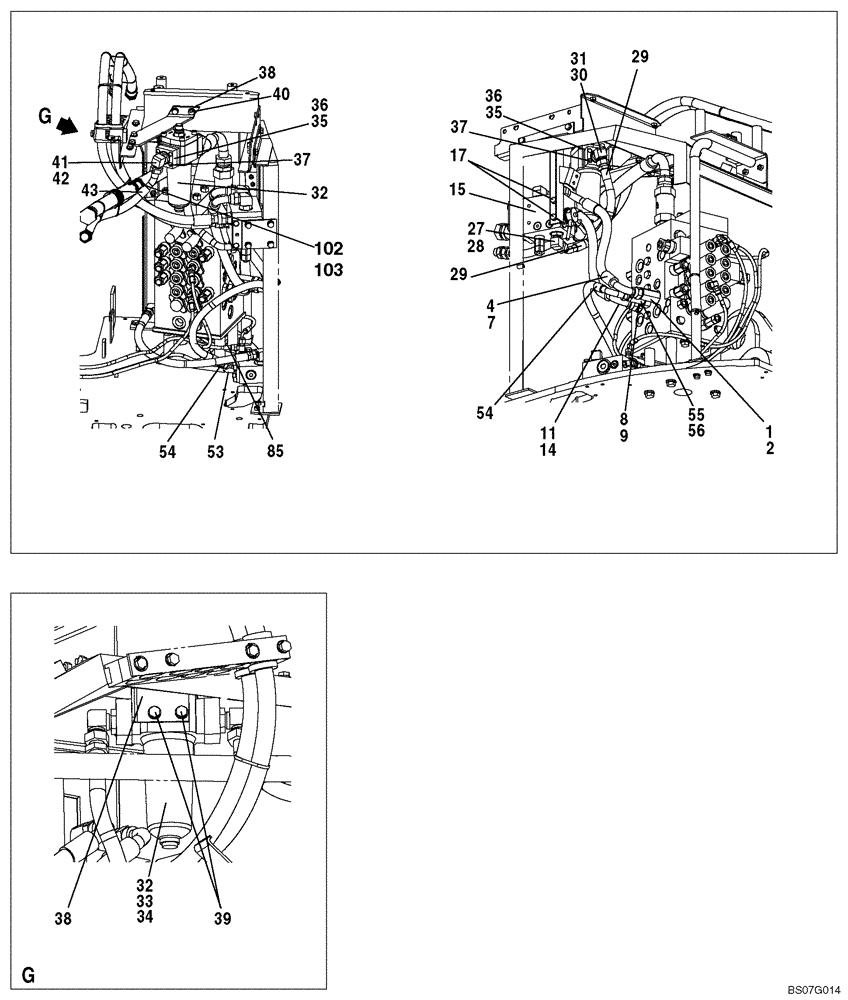

Запчасти Case CX135SR (08-054) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

1

KHJ1495

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

4

KMJ2867

HOSE ASSY.,19.00 mm ID x 650.00 mm

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ1348

ADAPTER

Incl. 9

1шт.

9

154503A1

O-RING

1шт.

11

KMJ2868

HOSE ASSY.,19.00 mm ID x 620.00 mm

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KHJ2020

HYDRAULIC VALVE

See Figure 08-90

1шт.

17

166351A1

BOLT,Sems, M10 x 20mm

2шт.

27

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 28

1шт.

28

154503A1

O-RING

1шт.

29

KMJ2870

HOSE ASSY.,19.00 mm ID x 450.00 mm

1шт.

30

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 31

1шт.

31

154503A1

O-RING

1шт.

32

163278A1

FILTER

See Figure 08-97

1шт.

35

163275A1

FLANGE

2шт.

36

154569A1

O-RING

2шт.

37

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

38

KMJ2865

SUPPORT

1шт.

39

166351A1

BOLT,Sems, M10 x 20mm

2шт.

40

166052A1

BOLT

4шт.

41

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 42

1шт.

42

154503A1

O-RING

1шт.

43

KMJ2871

HOSE ASSY.,19.00 mm ID x 650.00 mm

1шт.

53

KHJ2243

ELBOW

1шт.

54

KMJ2764

HOSE ASSY.,12.70 mm ID x 700.00 mm

1шт.

55

167645A1

FITTING

Incl. 56

1шт.

56

154487A1

O-RING

1шт.

85

KHJ2074

HOSE

1шт.

102

KHJ2024

COLLAR

1шт.

103

150496A1

MOUNTING CLIP

2шт.
