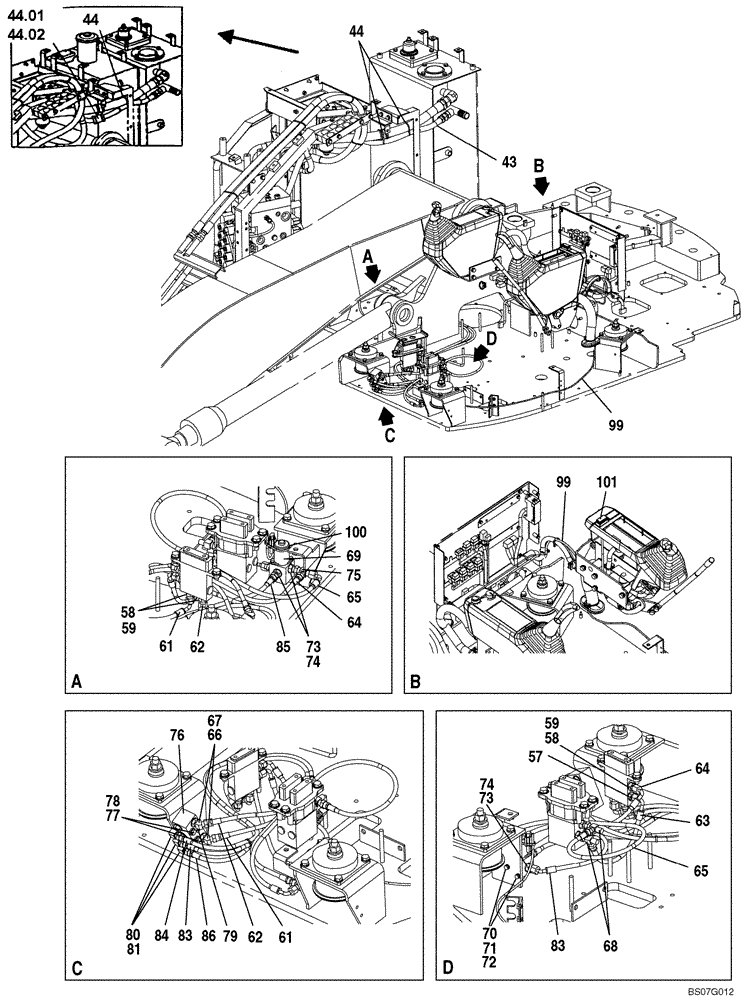

Запчасти Case CX135SR (08-052) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

43

KMJ2871

HOSE ASSY.,19.00 mm ID x 650.00 mm

1шт.

44

150498A1

MOUNTING CLIP

2шт.

44.01

KHJ2022

HOSE CLAMP

1шт.

44.02

150496A1

MOUNTING CLIP

2шт.

57

161841A1

HYD CONNECTOR

1шт.

58

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 59

3шт.

59

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

KMJ2777, HOSE SPL (NSS), Incls. Refs. 61 - 65

1шт.

61

KHJ2036

HOSE

1шт.

62

KHJ2088

HOSE

1шт.

63

KHJ2238

HOSE

1шт.

64

KHJ2180

HOSE,6.3mm ID x 500mm L

1шт.

65

KHJ2090

HOSE

1шт.

66

150933A1

ELBOW

Incl. 67

2шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2130

TEE

2шт.

69

162538A1

VALVE

See Figure 08-92

1шт.

70

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

71

183-106VR

SPRING WASHER

2шт.

72

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

73

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 74

3шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

KHJ2130

TEE

1шт.

76

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

77

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

78

153081A1

WASHER

2шт.

79

150821A1

PLUG

1шт.

80

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 81

3шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

KMJ2778, HOSE SPL (NSS), Incls. Refs. 83 - 86

1шт.

83

KHJ2244

HOSE

600 mm (23-5/8 in)

1шт.

84

KHJ2074

HOSE

1шт.

85

KHJ2074

HOSE

1шт.

86

KHJ2174

HOSE

1шт.

99

KMR0889

WIRE HARNESS

1шт.

100

150496A1

MOUNTING CLIP

1шт.

101

KHR3121

SWITCH

1шт.
