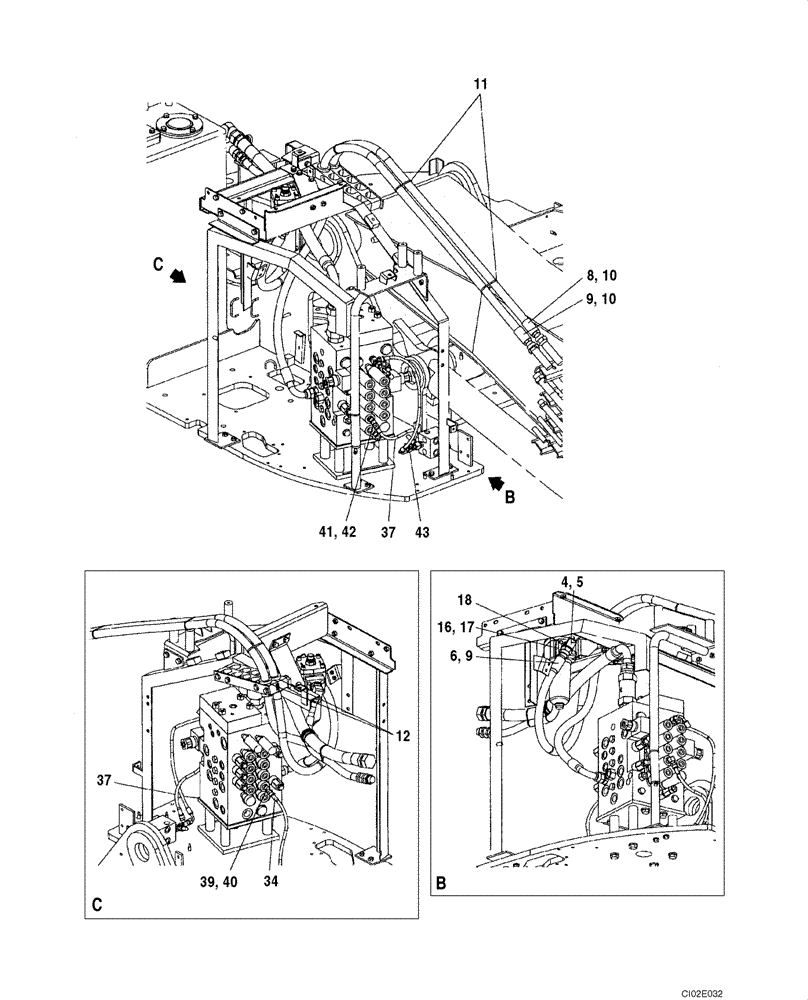

Запчасти Case CX135SR (08-050) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

4

KHJ1804

ELBOW

Incl. 5

1шт.

5

154503A1

O-RING

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KMJ2874

HOSE ASSY.,19.00 mm ID x 2350.00 mm

1шт.

9

KMJ2769

HOSE ASSY.,19.00 mm ID x 2250.00 mm

Replaces KMJ2876

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

11

150498A1

MOUNTING CLIP

1шт.

12

KHJ2023

HOSE CLAMP

2шт.

16

163275A1

FLANGE

2шт.

17

154569A1

O-RING

2шт.

18

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

34

KHJ2341

HOSE

1шт.

37

KHJ2046

HOSE

1шт.

39

150933A1

ELBOW

Incl. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

KHJ2130

TEE

1шт.
