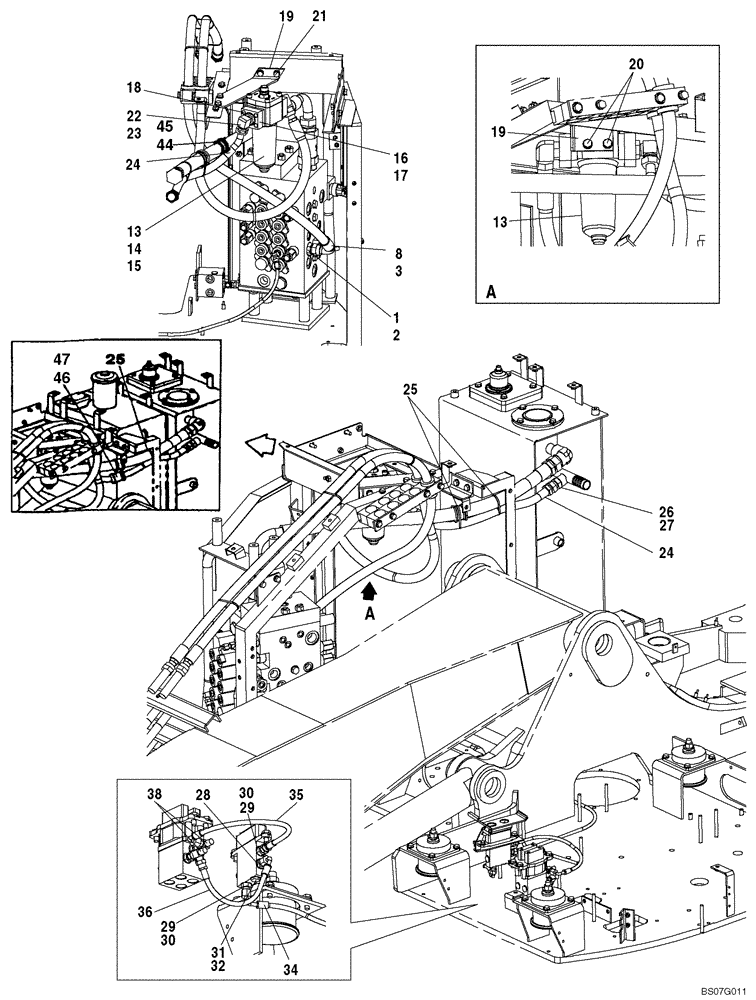

Запчасти Case CX135SR (08-049) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

1

KHJ1348

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KMJ2874

HOSE ASSY.,19.00 mm ID x 2350.00 mm

1шт.

13

163278A1

FILTER

See Figure 08-97, Incls. Refs. 14 & 15

1шт.

14

163279A1

HYDRAULIC OIL FILTER

1шт.

15

159706A1

INDICATOR

1шт.

16

163275A1

FLANGE

1шт.

17

154569A1

O-RING

1шт.

18

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

19

KMJ2865

SUPPORT

1шт.

20

166351A1

BOLT,Sems, M10 x 20mm

2шт.

21

166052A1

BOLT

4шт.

22

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 23

1шт.

23

154503A1

O-RING

1шт.

24

KMJ2871

HOSE ASSY.,19.00 mm ID x 650.00 mm

1шт.

25

150498A1

MOUNTING CLIP

1шт.

26

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 27

1шт.

27

154503A1

O-RING

1шт.

28

161841A1

HYD CONNECTOR

1шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 30

2шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

159002A1

PLUG

Incl. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

KHJ2341

HOSE

1шт.

35

KHJ2179

HOSE

1шт.

36

KHJ2238

HOSE

1шт.

38

KHJ2130

TEE

1шт.

44

KHJ2024

COLLAR

1шт.

45

150496A1

MOUNTING CLIP

2шт.

46

KHJ2022

HOSE CLAMP

1шт.

47

150496A1

MOUNTING CLIP

2шт.
