Запчасти Case CX135SR (08-048) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

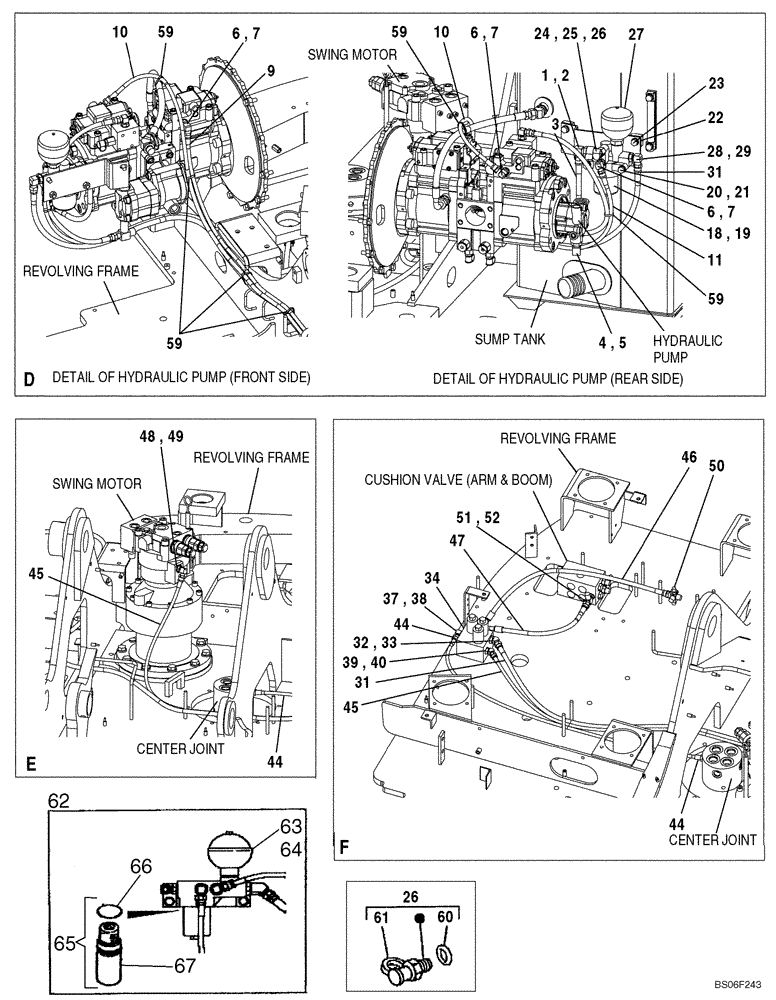

Схема запчастей Case CX135SR - (08-048) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS
46
48
45
37
67
62
64
47
49
24
23
59
50
40
52
10
7
26
44
10
31
21
2
26
44
38
63
60
20
65
4
28
6
31
27
6
19
6
5
29
34
32
7
25
51
9
7
11
66
18
3
59
39
33
1
44
61
22
45
59

Артикул

Название

Примечание

Количество

1

157935A1

ELBOW

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KHJ2553

HOSE

1шт.

4

157935A1

ELBOW

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 7

3шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ2690

HYDRAULIC HOSE,6.30 mm ID x 2550.00 mm

Replaces KHJ2074

1шт.

10

KHJ2730

HYDRAULIC HOSE,6.30 mm ID x 2850.00 mm

Replaces KHJ2078

1шт.

11

KHJ2164

HOSE

No Longer Used

1шт.

11a

KHJ2599

HOSE

Not Illustrated

1шт.

18

KHJ1474

FILTER ASSY

Incl. 19; No Longer Used, For Service Order KHJ14870 Accumulator Assy, Ref 62

1шт.

19

KHJ1493

HYDRAULIC OIL FILTER

1шт.

20

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

21

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

22

KMJ2966

BRACKET

1шт.

23

166351A1

BOLT,Sems, M10 x 20mm

2шт.

24

KHJ2620

BUSHING

Replaces 151136A1, Incl. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

1541849C1

COUPLING

Incl. 60, 61

1шт.

27

KHJ0997

ACCUMULATOR

No Longer Used, For Service Order KHJ14870 Accumulator Assy, Ref 62

1шт.

28

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 29

1шт.

29

154475A1

O-RING

1шт.

31

KHJ2208

HOSE

1шт.

32

157584A1

ELBOW

Incl. 33

1шт.

33

154475A1

O-RING

1шт.

34

KNJ15440

; Replaces KNJ2781, See Figure 08-93

1шт.

37

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

39

150933A1

ELBOW

Incl. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

KHJ2151

HOSE

P.I.N. DAC0812101 - DAC0812162

1шт.

44

KHJ2054

HOSE

P.I.N. DAC0812163 And After

1шт.

45

KHJ2062

HOSE

1шт.

46

KHJ2329

HOSE

1шт.

47

KHJ2169

HOSE

1шт.

48

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 49

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KHJ1967

ADAPTER

1шт.

51

162827A1

TEE

Incl. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

150496A1

MOUNTING CLIP

1шт.

61

H434163

DUST CAP

1шт.

60

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

62

KHJ14870

ACCUMULATOR

Incl. 63 - 67

1шт.

63

KHJ2359

ACCUMULATOR

1шт.

64

154487A1

O-RING

1шт.

65

KHJ14880

MANIFOLD

1шт.

66

154641A1

O-RING

1шт.

67

KHJ1493

HYDRAULIC OIL FILTER

1шт.

Выбрано товаров: 50
