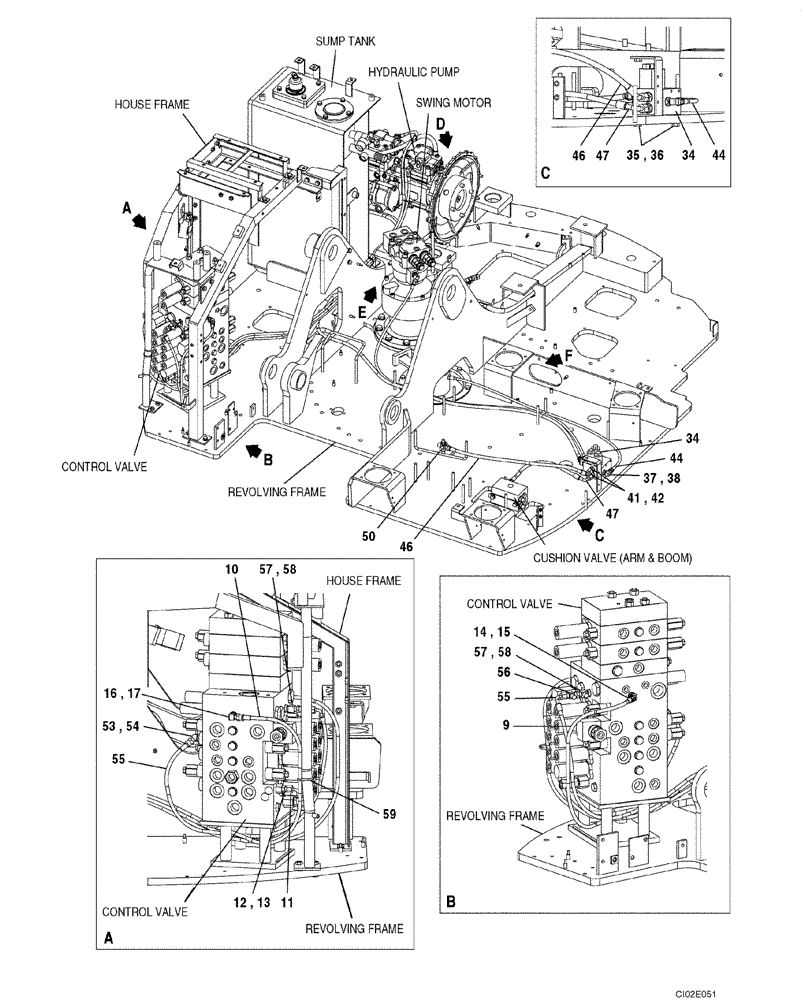

Запчасти Case CX135SR (08-047) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

9

KHJ2690

HYDRAULIC HOSE,6.30 mm ID x 2550.00 mm

Replaces KHJ2074

1шт.

10

KHJ2730

HYDRAULIC HOSE,6.30 mm ID x 2850.00 mm

Replaces KHJ2078

1шт.

11

KHJ2164

HOSE

No Longer Used

1шт.

11a

KHJ2599

HOSE

Not Illustrated

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

150933A1

ELBOW

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

KHJ15440

SOLENOID VALVE

; Replaces KNJ2781, See Figure 08-93

1шт.

35

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

36

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

37

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 42

2шт.

42

154475A1

O-RING

1шт.

44

KHJ2151

HOSE

P.I.N. DAC0812101 - DAC0812162

1шт.

44

KHJ2054

HOSE

P.I.N. DAC0812163 And After

1шт.

46

KHJ2329

HOSE

1шт.

47

KHJ2169

HOSE

1шт.

50

KHJ1967

ADAPTER

1шт.

53

150933A1

ELBOW

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ2092

HOSE

1шт.

56

KHJ2130

TEE

1шт.

57

159497A1

TEE

Incl. 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

150496A1

MOUNTING CLIP

1шт.
