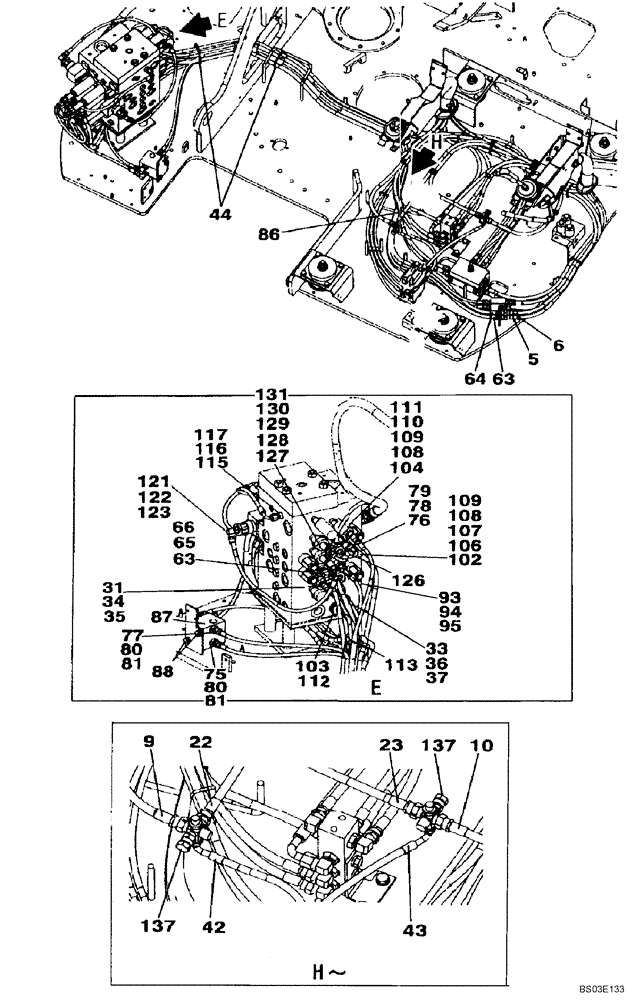

Запчасти Case CX135SR (08-045) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
5
KHJ2368
HOSE
2350 mm (92-5/8 in); See Figure 08-43
1шт.
6
KHJ2368
HOSE
2350 mm (92-5/8 in); See Figure 08-43
1шт.
9
KHJ2182
HOSE
1450 mm (57-1/8 in); See Figure 08-43
1шт.
10
KHJ2333
HOSE
1920 mm (75-5/8 in); See Figure 08-43
1шт.
22
KHJ2335
HOSE
1780 mm (70-1/8 in); See Figure 08-43
1шт.
23
KHJ2336
HOSE
1800 mm (70-7/8 in); See Figure 08-43
1шт.
31
KHJ2166
HOSE,6.3mm ID x 2300mm L
2300 mm (90-5/8 in); See Figure 08-44
1шт.
33
KHJ2341
HOSE
See Figure 08-44
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
36
150933A1
ELBOW
Incl. 37
2шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
42
KHJ1507
HYDRAULIC HOSE,6.35 mm ID x 420.00 mm
1шт.
43
168728A1
HYDRAULIC HOSE,6.30 mm ID x 400.00 mm
1шт.
44
150498A1
MOUNTING CLIP
1шт.
63
KHJ2347
HOSE
2500 mm (98-1/2 in)
1шт.
64
KHJ2348
HOSE
3200 mm (126 in)
1шт.
65
161087A1
ELBOW
Incl. 66
1шт.
66
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
75
KHJ2074
HOSE
See Figure 08-46
1шт.
76
KHJ2075
HOSE
See Figure 08-46
1шт.
77
KHJ2074
HOSE
See Figure 08-46
1шт.
78
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 79
1шт.
79
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
80
153378A1
ADAPTER
Incl. 81
2шт.
81
154475A1
O-RING
1шт.
86
150496A1
MOUNTING CLIP
1шт.
87
KHJ2317
VALVE, CUSHION
See Figure 08-94
1шт.
88
166351A1
BOLT,Sems, M10 x 20mm
2шт.
93
KHJ2088
HOSE
See Figure 08-45
1шт.
94
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 95
1шт.
95
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
102
KHJ2102
HOSE
2700 mm (106-3/8 in); See Figure 08-46
1шт.
103
KHJ2344
HOSE
2500 mm (98-1/2 in); See Figure 08-46
1шт.
104
KHJ2349
HOSE
2550 mm (100-1/2 in); See Figure 08-46
1шт.
106
KHJ2132
TEE
Incl. 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
162525A1
STUD
Incl. 109
2шт.
109
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
110
167517A1
TEE
Incl. 111
2шт.
111
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
112
KHJ1266
ADAPTER
1шт.
113
150498A1
MOUNTING CLIP
1шт.
115
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 116
1шт.
116
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
117
KHJ2179
HOSE
1шт.
121
KHJ2181
HOSE
580 mm (22-7/8 in)
1шт.
122
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 123
1шт.
123
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
126
KMJ2716
HYD TUBE,6 mm ID x 8 mm OD
1шт.
127
KHJ2131
TEE
Incl. 128
1шт.
128
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
129
162525A1
STUD
Incl. 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
131
KHJ2142
HOSE
500 mm (19-3/4 in)
1шт.
137
158842A1
PLUG
2шт.
Выбрано товаров: 56
