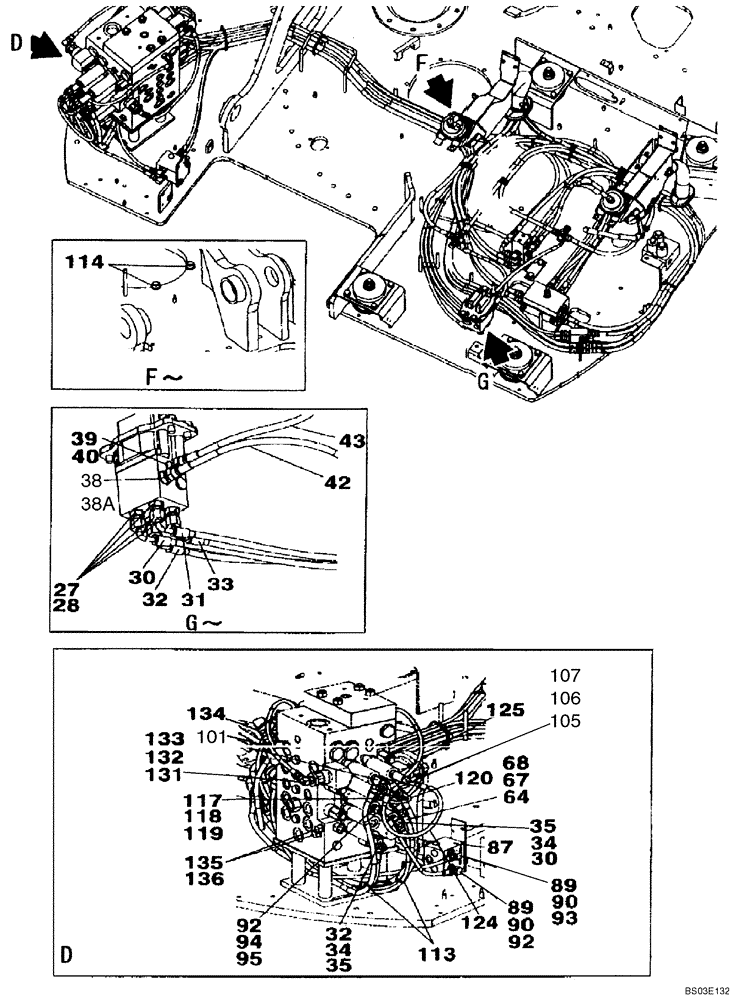

Запчасти Case CX135SR (08-044) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
27
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 28
4шт.
28
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
30
KHJ2167
HOSE
2800 mm (110-1/4 in)
1шт.
31
KHJ2166
HOSE,6.3mm ID x 2300mm L
2300 mm (90-5/8 in); See Figure 08-45
1шт.
32
KHJ2340
HOSE
2750 mm (108-3/8 in)
1шт.
33
KHJ2341
HOSE
See Figure 08-45
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 35
2шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
38
161841A1
HYD CONNECTOR
Incl. 38A
1шт.
38a
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
39
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 40
1шт.
40
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
42
KHJ1507
HYDRAULIC HOSE,6.35 mm ID x 420.00 mm
1шт.
43
168728A1
HYDRAULIC HOSE,6.30 mm ID x 400.00 mm
1шт.
64
KHJ2348
HOSE
3200 mm (126 in)
1шт.
67
153559A1
ELBOW
Incl. 68
1шт.
68
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
87
KHJ2317
VALVE, CUSHION
See Figure 08-94
1шт.
89
156554A1
ELBOW
Incl. 90
2шт.
90
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
92
KHJ2343
HOSE
480 mm (19 in)
1шт.
93
KHJ2088
HOSE
See Figure 08-45
1шт.
94
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 95
1шт.
95
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
101
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-46
1шт.
105
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-46
1шт.
106
KHJ2132
TEE
Incl. 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
113
150498A1
MOUNTING CLIP
1шт.
114
167795A1
CAP
2шт.
117
KHJ2179
HOSE
See Figure 08-45
1шт.
118
KHJ2131
TEE
Incl. 119
1шт.
119
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
120
KMJ2716
HYD TUBE,6 mm ID x 8 mm OD
1шт.
124
KHJ2350
HOSE
520 mm (20-1/2 in)
1шт.
125
KHJ2415
VALVE, CUSHION
See Figure 08-96
1шт.
131
KHJ2142
HOSE
500 mm (19-3/4 in); See Figure 08-45
1шт.
132
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 133
1шт.
133
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
134
150498A1
MOUNTING CLIP
1шт.
135
159026A1
SOCKET
Incl. 136
2шт.
136
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 42
