(08-041) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD

Запчасти Case CX135SR (08-041) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS

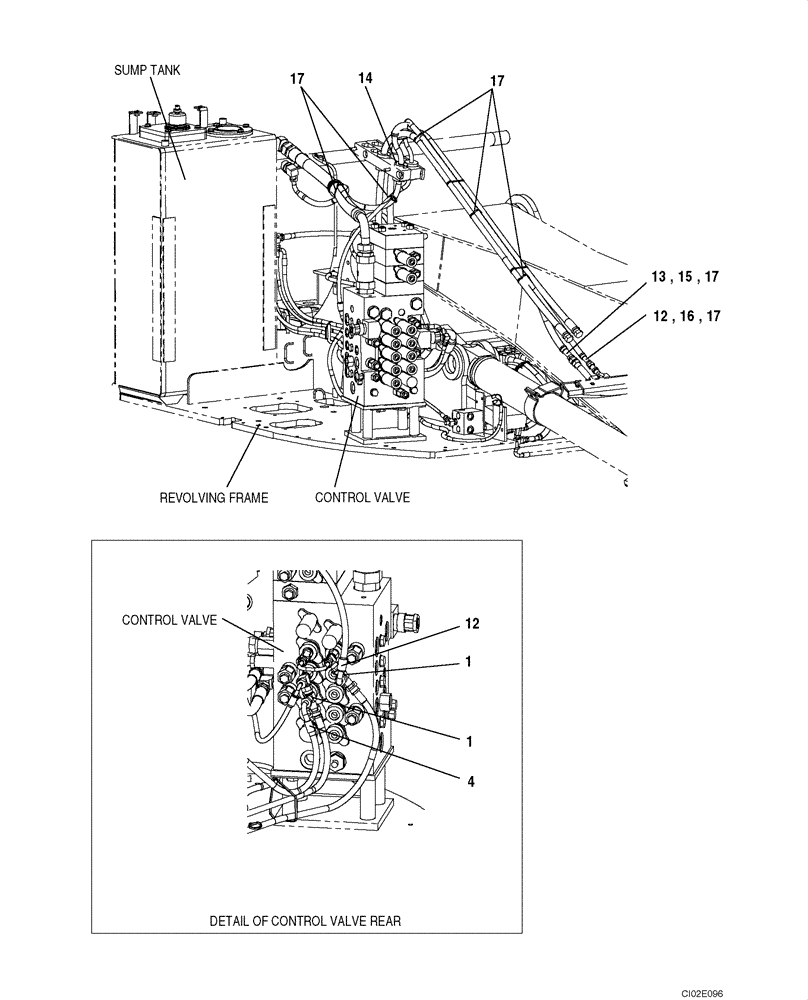

Схема запчастей Case CX135SR - (08-041) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS
15
4
14
17
1
17
13
12
16
17
17
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2234

TEE

2шт.

4

KHJ2413

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

See Figure 08-42

1шт.

12

KHJ1571

HYDRAULIC HOSE,9.52 mm ID x 2050.00 mm

1шт.

13

KMJ2920

HOSE ASSY.,12.70 mm ID x 2300.00 mm

1шт.

14

KHJ2021

HOSE CLAMP

1шт.

15

158063A1

PLASTIC-RUBBER TUBE

1шт.

16

157768A1

PLASTIC-RUBBER TUBE

1300 mm (51-1/4 in)

1шт.

17

150496A1

MOUNTING CLIP

1шт.
