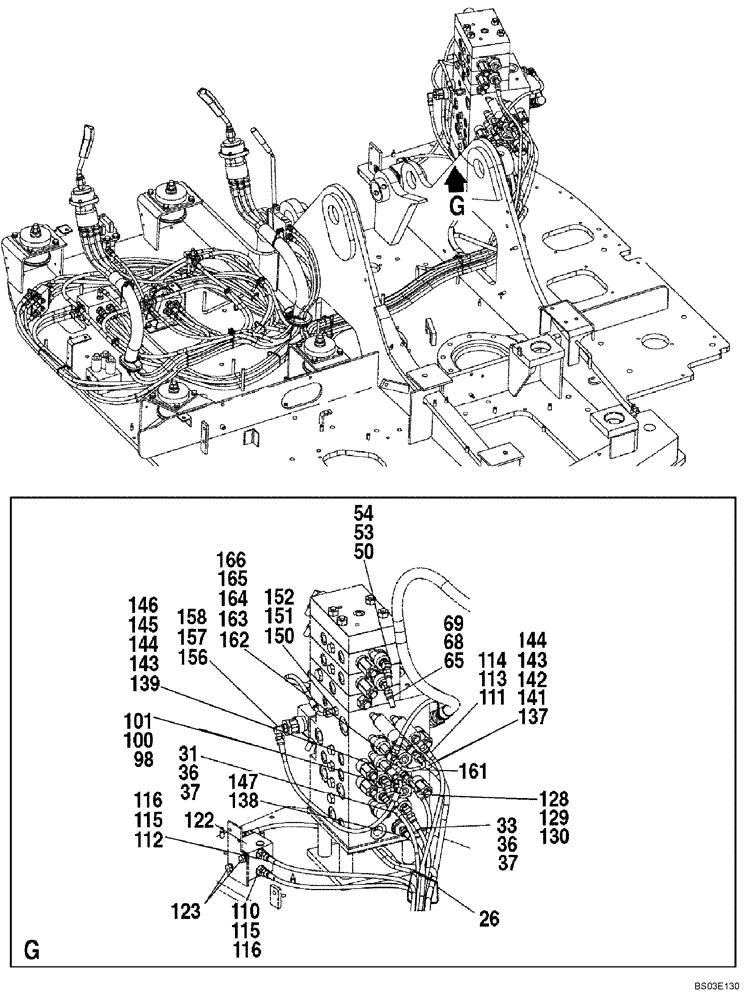

Запчасти Case CX135SR (08-040) - PILOT CONTROL LINES - MODELS WITH DOZER BLADE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
26
150498A1
MOUNTING CLIP
1шт.
31
KHJ2166
HOSE,6.3mm ID x 2300mm L
2300 mm (90-5/8 in); See Figure 08-39
1шт.
33
KHJ2341
HOSE
See Figure 08-39
1шт.
36
150933A1
ELBOW
Incl. 37
2шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
50
KHJ2077
HOSE
2800 mm (110-1/4 in)
1шт.
53
150933A1
ELBOW
Incl. 54
1шт.
54
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
65
KHJ2071
HOSE
See Figure 08-37
1шт.
68
150933A1
ELBOW
Incl. 69
1шт.
69
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
98
KHJ2347
HOSE
2500 mm (98-1/2 in); See Figure 08-38
1шт.
100
161087A1
ELBOW
Incl. 101
1шт.
101
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
110
KHJ2074
HOSE
See Figure 08-38
1шт.
111
KHJ2075
HOSE
See Figure 08-38
1шт.
112
KHJ2074
HOSE
See Figure 08-38
1шт.
113
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 114
1шт.
114
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
153378A1
ADAPTER
Incl. 116
2шт.
116
154475A1
O-RING
1шт.
122
KHJ2317
VALVE, CUSHION
See Figure 08-94
1шт.
123
166351A1
BOLT,Sems, M10 x 20mm
2шт.
128
KHJ2088
HOSE
See Figure 08-39
1шт.
129
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
137
KHJ2102
HOSE
2700 mm (106-3/8 in); See Figure 08-38
1шт.
138
KHJ2344
HOSE
2500 mm (98-1/2 in); See Figure 08-38
1шт.
139
KHJ2349
HOSE
2550 mm (100-1/2 in); See Figure 08-38
1шт.
141
KHJ2132
TEE
Incl. 142
1шт.
142
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
143
162525A1
STUD
Incl. 144
2шт.
144
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
145
167517A1
TEE
Incl. 146
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
147
KHJ1266
ADAPTER
1шт.
150
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 151
1шт.
151
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
152
KHJ2179
HOSE
See Figure 08-39
1шт.
156
KHJ2181
HOSE
580 mm (22-7/8 in)
1шт.
157
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 158
1шт.
158
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
161
KMJ2716
HYD TUBE,6 mm ID x 8 mm OD
1шт.
162
KHJ2131
TEE
Incl. 163
1шт.
163
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
164
162525A1
STUD
Incl. 165
1шт.
165
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
166
KHJ2142
HOSE
500 mm (19-3/4 in); See Figure 08-39
1шт.
Выбрано товаров: 48
