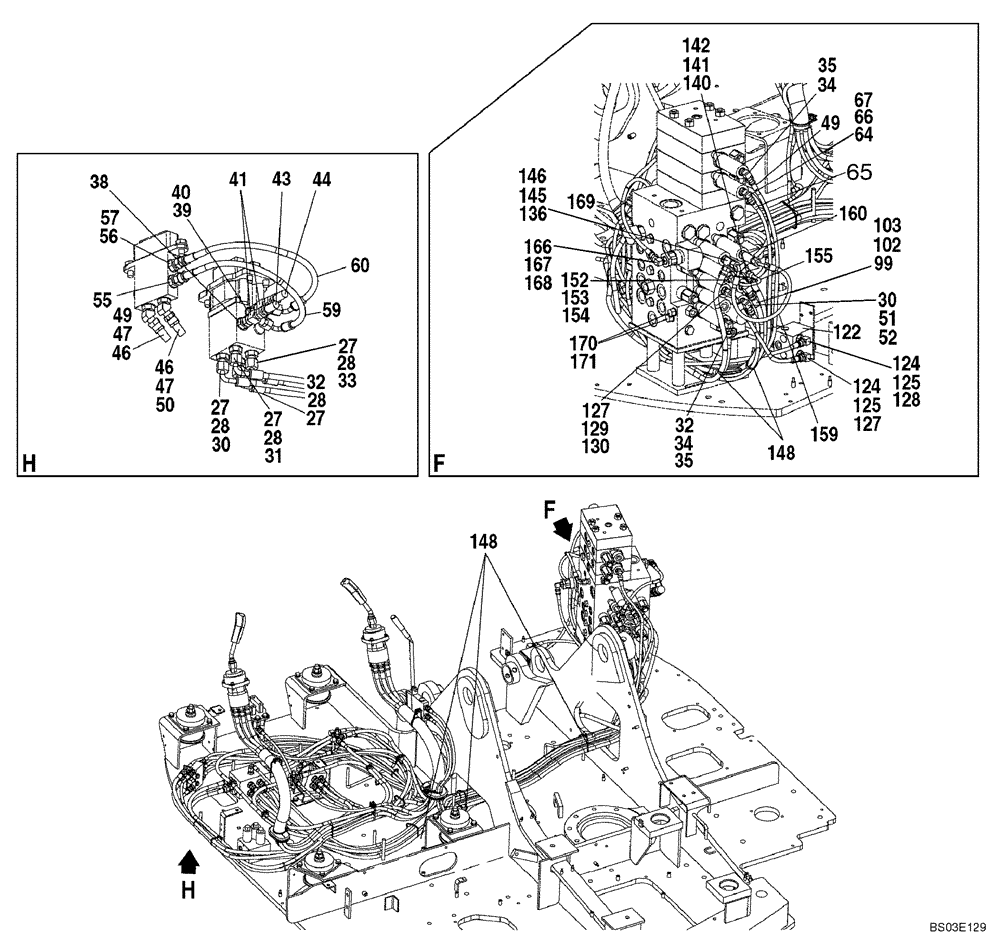

Запчасти Case CX135SR (08-039) - PILOT CONTROL LINES - MODELS WITH DOZER BLADE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
27
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 28
4шт.
28
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
30
KHJ2167
HOSE
2800 mm (110-1/4 in)
1шт.
31
KHJ2166
HOSE,6.3mm ID x 2300mm L
2300 mm (90-5/8 in); See Figure 08-40
1шт.
32
KHJ2340
HOSE
2750 mm (108-3/8 in)
1шт.
33
KHJ2341
HOSE
See Figure 08-40
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 35
2шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
38
161841A1
HYD CONNECTOR
1шт.
39
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 40
1шт.
40
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
41
KHJ2130
TEE
2шт.
43
KHJ1507
HYDRAULIC HOSE,6.35 mm ID x 420.00 mm
See Figure 08-38
1шт.
44
168728A1
HYDRAULIC HOSE,6.30 mm ID x 400.00 mm
See Figure 08-38
1шт.
46
150933A1
ELBOW
Incl. 47
2шт.
47
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
49
KHJ2082
HOSE
3400 mm (133-7/8 in)
1шт.
50
KHJ2077
HOSE
2800 mm (110-1/4 in); See Figure 08-40
1шт.
51
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 52
1шт.
52
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
55
161841A1
HYD CONNECTOR
1шт.
56
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 57
1шт.
57
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
59
KHJ2179
HOSE
1шт.
60
KHJ2179
HOSE
1шт.
64
KHJ2174
HOSE
See Figure 08-37
1шт.
65
KHJ2071
HOSE
1шт.
66
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 67
1шт.
67
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
99
KHJ2348
HOSE
3200 mm (126 in); See Figure 08-38
1шт.
102
153559A1
ELBOW
Incl. 103
1шт.
103
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
122
KHJ2317
VALVE, CUSHION
See Figure 08-94
1шт.
124
156554A1
ELBOW
Incl. 125
2шт.
125
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
127
KHJ2343
HOSE
480 mm (19 in)
1шт.
128
KHJ2088
HOSE
See Figure 08-40
1шт.
129
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
136
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-38
1шт.
140
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-38
1шт.
141
KHJ2132
TEE
Incl. 142
1шт.
142
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
145
167517A1
TEE
Incl. 146
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
148
150498A1
MOUNTING CLIP
1шт.
152
KHJ2179
HOSE
See Figure 08-40
1шт.
153
KHJ2131
TEE
Incl. 154
1шт.
154
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
155
KMJ2716
HYD TUBE,6 mm ID x 8 mm OD
1шт.
159
KHJ2350
HOSE
520 mm (20-1/2 in)
1шт.
160
KHJ2415
VALVE, CUSHION
See Figure 08-96
1шт.
166
KHJ2142
HOSE
500 mm (19-3/4 in); See Figure 08-40
1шт.
167
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 168
1шт.
168
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
169
150498A1
MOUNTING CLIP
1шт.
170
159026A1
SOCKET
Incl. 171
2шт.
171
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 58
