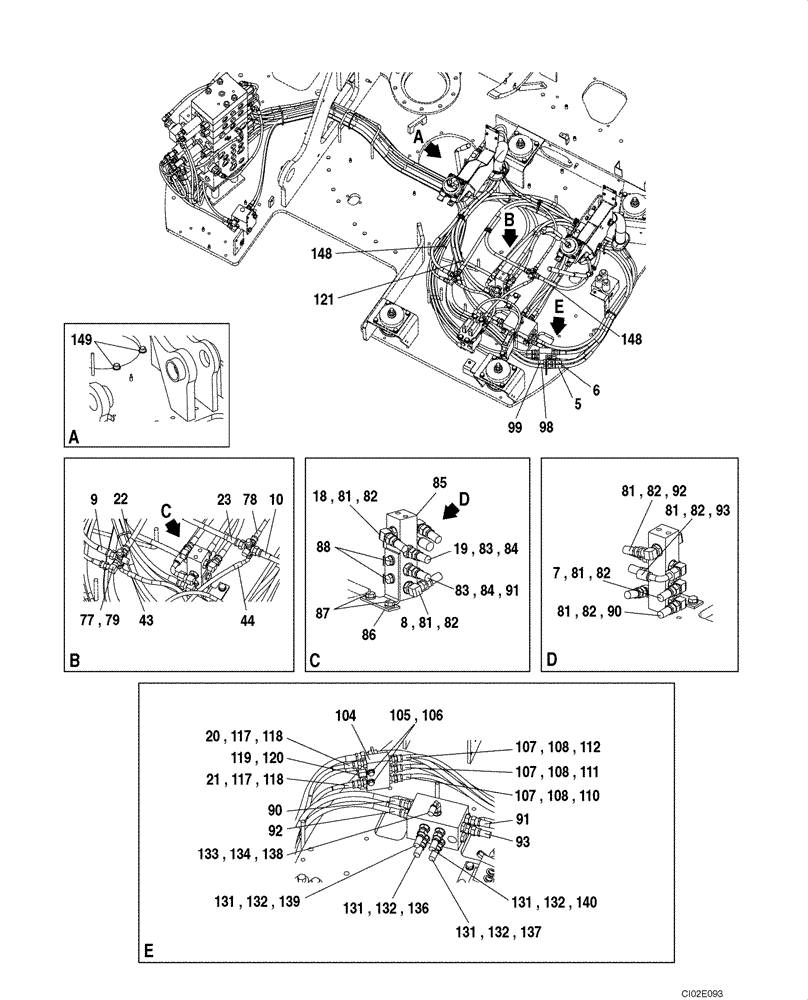

Запчасти Case CX135SR (08-038) - PILOT CONTROL LINES - MODELS WITH DOZER BLADE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
5
KHJ2368
HOSE
2350 mm (92-5/8 in); See Figure 08-37
1шт.
6
KHJ2368
HOSE
2350 mm (92-5/8 in); See Figure 08-37
1шт.
7
KHJ2387
HOSE
1550 mm (61 in); See Figure 08-37
1шт.
8
KHJ2387
HOSE
1550 mm (61 in); See Figure 08-37
1шт.
9
KHJ2182
HOSE
1450 mm (57-1/8 in); See Figure 08-37
1шт.
10
KHJ2333
HOSE
1920 mm (75-5/8 in); See Figure 08-37
1шт.
18
KHJ2213
HOSE
1480 mm (58-3/8 in); See Figure 08-37
1шт.
19
KHJ2213
HOSE
1480 mm (58-3/8 in); See Figure 08-37
1шт.
20
KHJ2391
HOSE
1500 mm (59-1/8 in); See Figure 08-37
1шт.
21
KHJ2387
HOSE
1550 mm (61 in); See Figure 08-37
1шт.
22
KHJ2335
HOSE
1780 mm (70-1/8 in); See Figure 08-37
1шт.
23
KHJ2336
HOSE
1800 mm (70-7/8 in); See Figure 08-37
1шт.
43
KHJ1507
HYDRAULIC HOSE,6.35 mm ID x 420.00 mm
See Figure 08-39
1шт.
44
168728A1
HYDRAULIC HOSE,6.30 mm ID x 400.00 mm
See Figure 08-39
1шт.
77
KHJ2052
HOSE
1100 mm (43-3/8 in); See Figure 08-37
1шт.
78
KHJ2052
HOSE
1100 mm (43-3/8 in); See Figure 08-37
1шт.
79
163814A1
ELBOW
1шт.
81
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 82
6шт.
82
154475A1
O-RING
1шт.
83
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 84
2шт.
84
154475A1
O-RING
1шт.
85
KHJ2437
MANIFOLD
1шт.
86
KMJ2965
BRACKET
1шт.
87
166052A1
BOLT
2шт.
88
166351A1
BOLT,Sems, M10 x 20mm
2шт.
90
KHJ2323
HOSE
1шт.
91
KHJ2416
HOSE
1480 mm (58-3/8 in)
1шт.
92
KHJ2438
HOSE
1650 mm (65 in)
1шт.
93
KHJ2439
HOSE
1500 mm (59-1/8 in)
1шт.
98
KHJ2347
HOSE
2500 mm (98-1/2 in); See Figure 08-40
1шт.
99
KHJ2348
HOSE
3200 mm (126 in); See Figure 08-39
1шт.
104
KHJ17120
VALVE SECTION
; Replaces KHJ1973
1шт.
105
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
106
153081A1
WASHER
2шт.
107
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 108
3шт.
108
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
110
KHJ2074
HOSE
See Figure 08-40
1шт.
111
KHJ2075
HOSE
See Figure 08-40
1шт.
112
KHJ2074
HOSE
See Figure 08-40
1шт.
117
152747A1
ADAPTER
Incl. 118
2шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
119
153412A1
SOCKET
Incl. 120
1шт.
120
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
121
150496A1
MOUNTING CLIP
1шт.
131
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 132
4шт.
132
154475A1
O-RING
1шт.
133
KHJ2136
ADAPTER
Incl. 134
1шт.
134
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
136
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-39
1шт.
137
KHJ2102
HOSE
2700 mm (106-3/8 in); See Figure 08-40
1шт.
138
KHJ2344
HOSE
2500 mm (98-1/2 in); See Figure 08-40
1шт.
139
KHJ2349
HOSE
2550 mm (100-1/2 in); See Figure 08-40
1шт.
140
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-39
1шт.
148
150498A1
MOUNTING CLIP
1шт.
149
167795A1
CAP
2шт.
Выбрано товаров: 55
