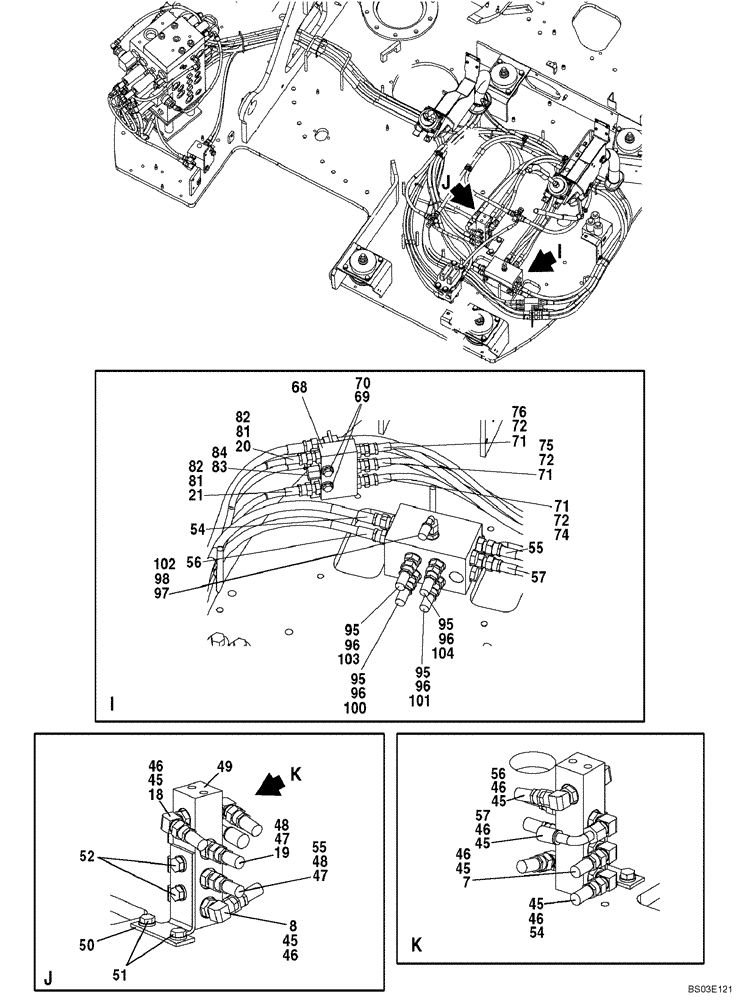

Запчасти Case CX135SR (08-036) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
7
KHJ2387
HOSE
1550 mm (61 in); See Figure 08-33
1шт.
8
KHJ2387
HOSE
1550 mm (61 in); See Figure 08-33
1шт.
18
KHJ2213
HOSE
1480 mm (58-3/8 in); See Figure 08-33
1шт.
19
KHJ2213
HOSE
1480 mm (58-3/8 in); See Figure 08-33
1шт.
20
KHJ2391
HOSE
1500 mm (59-1/8 in); See Figure 08-33
1шт.
21
KHJ2387
HOSE
1550 mm (61 in); See Figure 08-33
1шт.
45
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 46
6шт.
46
154475A1
O-RING
1шт.
47
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 48
2шт.
48
154475A1
O-RING
1шт.
49
KHJ2437
MANIFOLD
1шт.
50
KMJ2965
BRACKET
1шт.
51
166052A1
BOLT
2шт.
52
166351A1
BOLT,Sems, M10 x 20mm
2шт.
54
KHJ2323
HOSE
1шт.
55
KHJ2416
HOSE
1480 mm (58-3/8 in)
1шт.
56
KHJ2438
HOSE
1650 mm (65 in)
1шт.
57
KHJ2439
HOSE
1500 mm (59-1/8 in)
1шт.
68
KHJ17120
VALVE SECTION
; Replaces KHJ1973
1шт.
69
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
70
153081A1
WASHER
2шт.
71
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 72
3шт.
72
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
74
KHJ2074
HOSE
See Figure 08-35
1шт.
75
KHJ2075
HOSE
See Figure 08-35
1шт.
76
KHJ2074
HOSE
See Figure 08-35
1шт.
81
152747A1
ADAPTER
Incl. 82
2шт.
82
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
83
153412A1
SOCKET
Incl. 84
1шт.
84
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
95
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 96
4шт.
96
154475A1
O-RING
1шт.
97
KHJ2136
ADAPTER
Incl. 98
1шт.
98
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
100
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-34
1шт.
101
KHJ2102
HOSE
2700 mm (106-3/8 in); See Figure 08-35
1шт.
102
KHJ2344
HOSE
2500 mm (98-1/2 in); See Figure 08-35
1шт.
103
KHJ2349
HOSE
2550 mm (100-1/2 in); See Figure 08-35
1шт.
104
KHJ2145
HOSE
3200 mm (128 in); See Figure 08-34
1шт.
