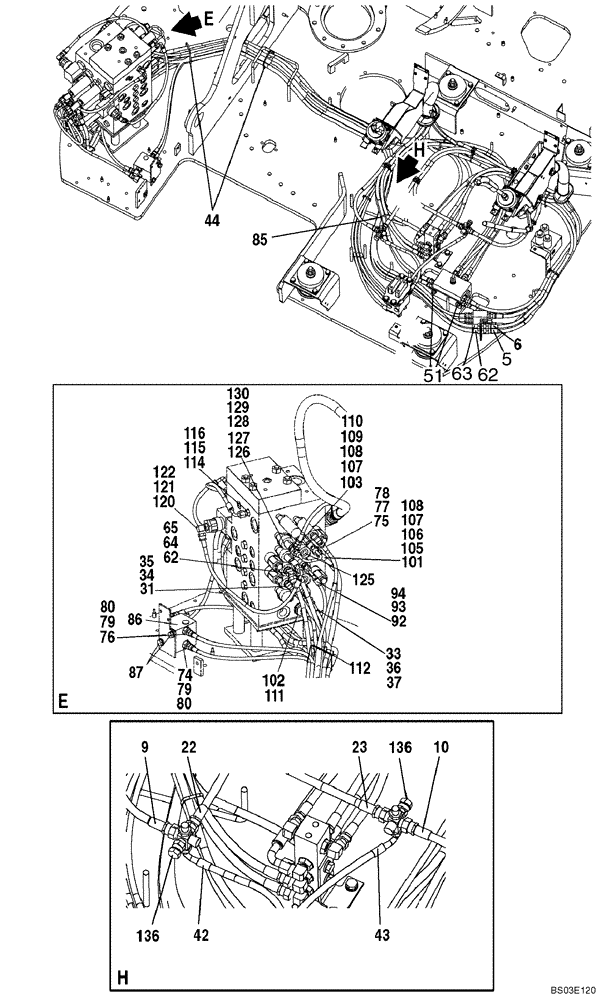

Запчасти Case CX135SR (08-035) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

5

KHJ2368

HOSE

2350 mm (92-5/8 in); See Figure 08-33

1шт.

6

KHJ2368

HOSE

2350 mm (92-5/8 in); See Figure 08-33

1шт.

9

KHJ2182

HOSE

1450 mm (57-1/8 in); See Figure 08-33

1шт.

10

KHJ2333

HOSE

1920 mm (75-5/8 in); See Figure 08-33

1шт.

22

KHJ2335

HOSE

1780 mm (70-1/8 in); See Figure 08-33

1шт.

23

KHJ2336

HOSE

1800 mm (70-7/8 in); See Figure 08-33

1шт.

31

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm (90-5/8 in); See Figure 08-34

1шт.

33

KHJ2341

HOSE

See Figure 08-34

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

150933A1

ELBOW

Incl. 37

2шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

KHJ1507

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

See Figure 08-34

1шт.

43

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

See Figure 08-34

1шт.

44

150498A1

MOUNTING CLIP

1шт.

51

166052A1

BOLT

2шт.

62

KHJ2347

HOSE

2500 mm (98-1/2 in)

1шт.

63

KHJ2348

HOSE

3200 mm (126 in); See Figure 08-35

1шт.

64

161087A1

ELBOW

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ2074

HOSE

See Figure 08-36

1шт.

75

KHJ2075

HOSE

See Figure 08-36

1шт.

76

KHJ2074

HOSE

See Figure 08-36

1шт.

77

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

153378A1

ADAPTER

Incl. 80

2шт.

80

154475A1

O-RING

1шт.

85

150496A1

MOUNTING CLIP

1шт.

86

KHJ2317

VALVE, CUSHION

See Figure 08-94

1шт.

87

166351A1

BOLT,Sems, M10 x 20mm

2шт.

92

KHJ2088

HOSE

1шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

KHJ2102

HOSE

2700 mm (106-3/8 in); See Figure 08-36

1шт.

102

KHJ2344

HOSE

2500 mm (98-1/2 in); See Figure 08-36

1шт.

103

KHJ2349

HOSE

2550 mm (100-1/2 in); See Figure 08-36

1шт.

105

KHJ2132

TEE

Incl. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

162525A1

STUD

Incl. 108

2шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

167517A1

TEE

Incl. 110

2шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

KHJ1266

ADAPTER

1шт.

112

150498A1

MOUNTING CLIP

1шт.

114

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 115

1шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

KHJ2179

HOSE

See Figure 08-34

1шт.

120

KHJ2181

HOSE

580 mm (22-7/8 in)

1шт.

121

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 122

1шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

KMJ2716

HYD TUBE,6 mm ID x 8 mm OD

1шт.

126

KHJ2131

TEE

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

162525A1

STUD

Incl. 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

KHJ2142

HOSE

500 mm (19-3/4 in); See Figure 08-34

1шт.

136

158842A1

PLUG

2шт.
