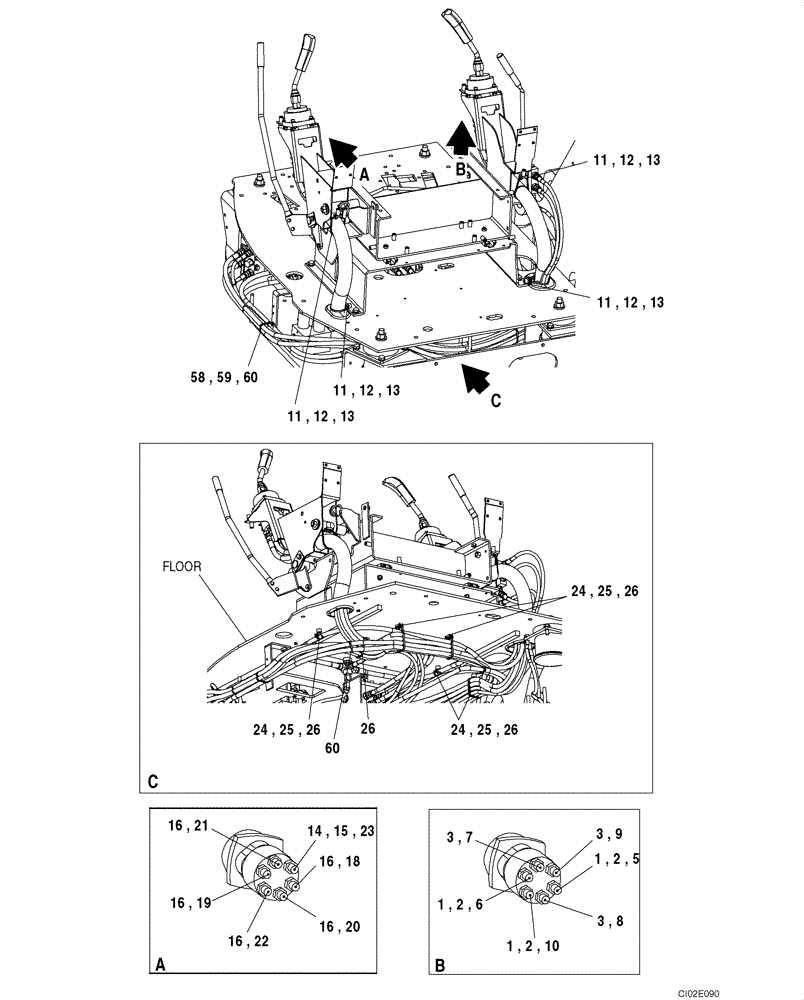

Запчасти Case CX135SR (08-033) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2368

HOSE

2350 mm (92-5/8 in); See Figure 08-35

1шт.

6

KHJ2368

HOSE

2350 mm (92-5/8 in); See Figure 08-35

1шт.

7

KHJ2387

HOSE

1550 mm (61 in); See Figure 08-36

1шт.

8

KHJ2387

HOSE

1550 mm (61 in); See Figure 08-36

1шт.

9

KHJ2182

HOSE

1450 mm (57-1/8 in); See Figure 08-35

1шт.

10

KHJ2333

HOSE

1920 mm (75-5/8 in); See Figure 08-35

1шт.

11

150860A1

COLLAR

4шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

13

150498A1

MOUNTING CLIP

4шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

161841A1

HYD CONNECTOR

5шт.

18

KHJ2213

HOSE

1480 mm (58-3/8 in); See Figure 08-36

1шт.

19

KHJ2213

HOSE

1480 mm (58-3/8 in); See Figure 08-36

1шт.

20

KHJ2391

HOSE

1500 mm (59-1/8 in); See Figure 08-36

1шт.

21

KHJ2387

HOSE

1550 mm (61 in); See Figure 08-36

1шт.

22

KHJ2335

HOSE

1780 mm (70-1/8 in); See Figure 08-35

1шт.

23

KHJ2336

HOSE

1800 mm (70-7/8 in); See Figure 08-35

1шт.

24

150860A1

COLLAR

5шт.

25

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

26

150498A1

MOUNTING CLIP

1шт.

58

150860A1

COLLAR

1шт.

59

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

60

150496A1

MOUNTING CLIP

1шт.
