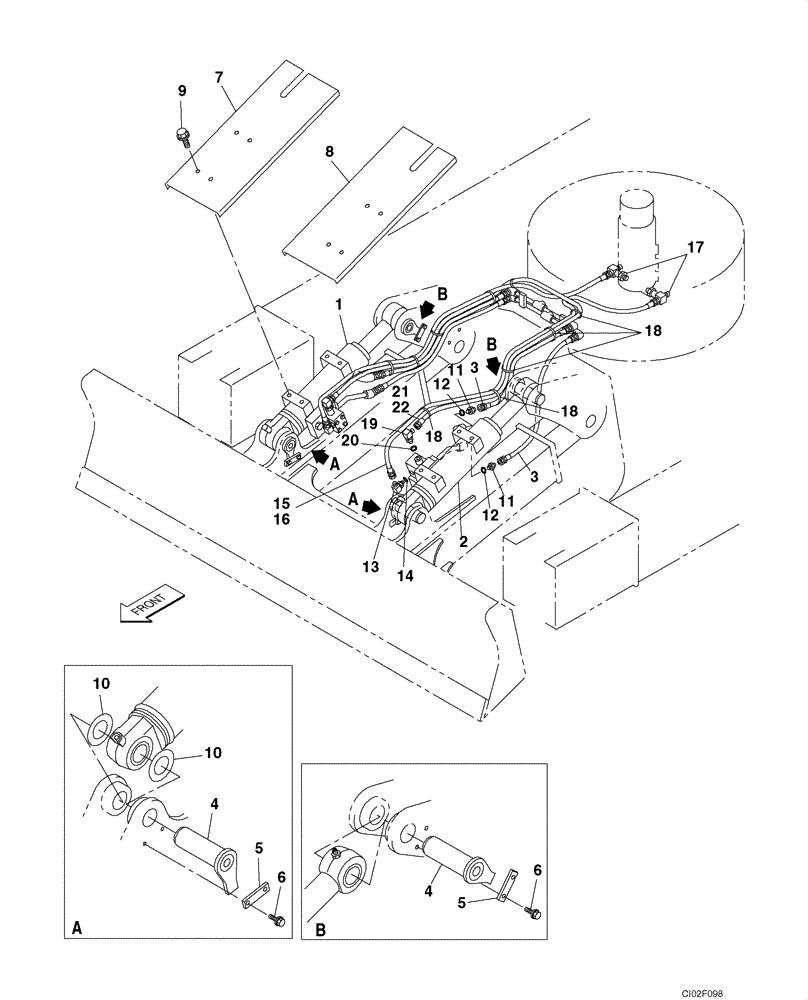

Запчасти Case CX135SR (08-032) - HYDRAULICS - BLADE CYLINDER LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KMV2553

HYDRAULIC CYLINDER

Dozer Blade, Right Hand, See Figure 08-112

1шт.

2

KMV2554

HYDRAULIC CYLINDER

Dozer Blade, Left Hand, See Figure 08-113

1шт.

3

168697A1

HOSE ASSY.

4шт.

4

KMV2147

PIN

4шт.

5

KHV0456

PLATE

4шт.

6

166351A1

BOLT,Sems, M10 x 20mm

8шт.

7

KMV2634

COVER

1шт.

8

KMV2635

COVER

1шт.

9

167893A1

BOLT

8шт.

10

KAV0395

SHIM

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 12

4шт.

12

154475A1

O-RING

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

159004A1

HOSE

2150 mm (84-5/8 in)

2шт.

16

151942A1

PLASTIC-RUBBER TUBE

2шт.

17

KHJ1381

FITTING

2шт.

18

150067A1

MOUNTING CLIP

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 20

2шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

169252A1

HYDRAULIC HOSE,6.30 mm ID x 3000.00 mm

1шт.

22

169253A1

HYD TUBE

1шт.
