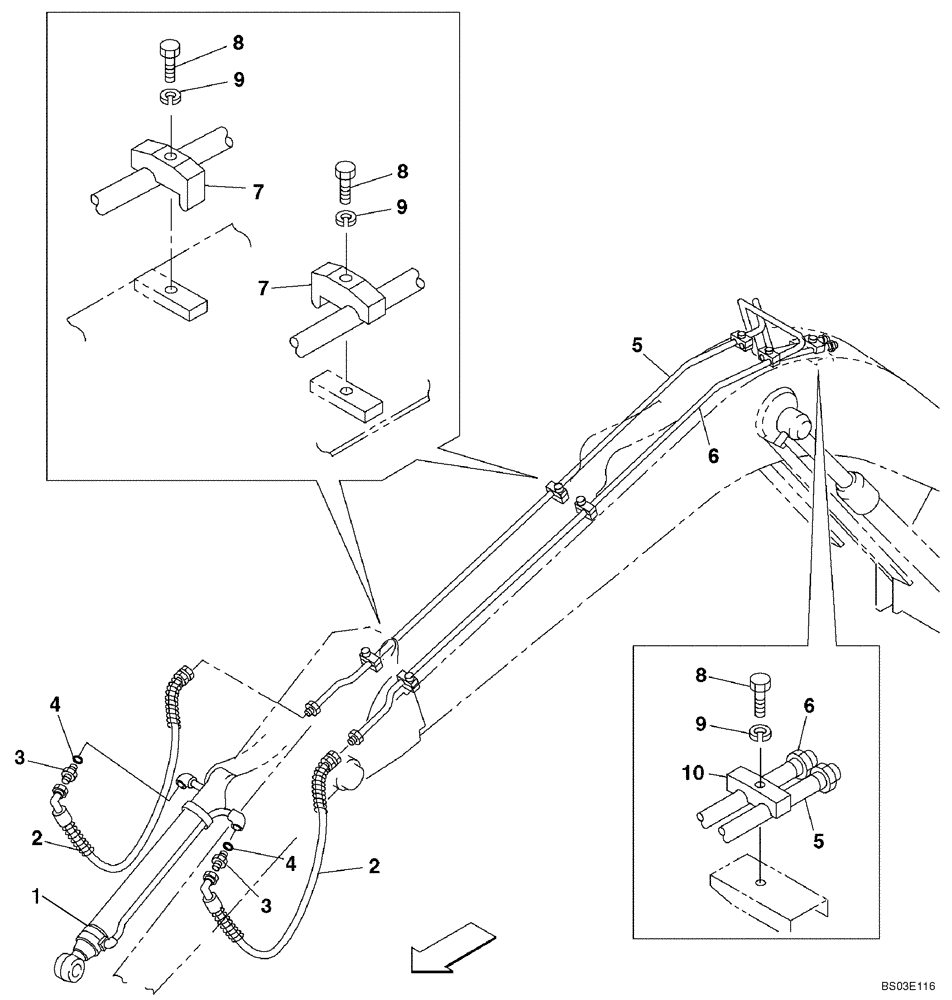

Запчасти Case CX135SR (08-027) - HYDRAULICS - BUCKET, 2,85 METER (9 FT 4 IN) ARM (08) - HYDRAULICS

1

KMV2545

BUCKET CYLINDER

Bucket; See Figure 08-109

1шт.

1

KMV2545R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR (NORTH AMERICA), Bucket, 2,85 METER (9 FT 4 IN) ARM (8/02-)

1шт.

1

KMV2545C

CORE-HYD CYLINDER

Return Number

1шт.

2

KMV2410

HOSE ASSY.,12.70 mm ID x 1450.00 mm

2шт.

3

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 4

2шт.

4

154487A1

O-RING

1шт.

5

KMV2377

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

6

KMV2378

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

7

166401A1

HALF-FLANGE

4шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

5шт.

9

183-112VR

SPRING WASHER

5шт.

10

KAV0486

PIPE CLAMP

1шт.
