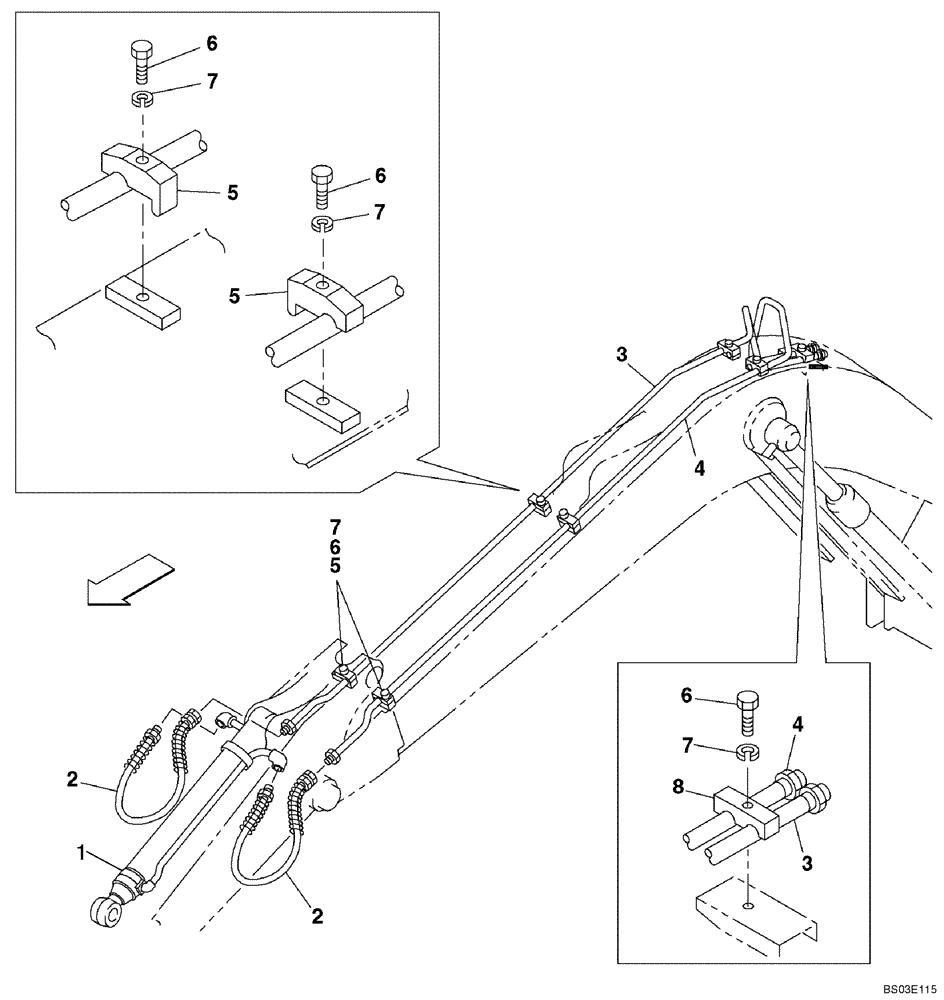

Запчасти Case CX135SR (08-026) - HYDRAULICS - BUCKET, 2,4 METER (7 FT 10 IN) ARM (08) - HYDRAULICS

1

KMV2545

BUCKET CYLINDER

Bucket, See Figure 08-109

1шт.

1

KMV2545R

REMAN-HYD CYLINDER

CX135SR CRAWLER EXCAVATOR (NORTH AMERICA), Bucket, 2,4 METER (7 FT 10 IN) ARM (8/02-)

1шт.

1

KMV2545C

CORE-HYD CYLINDER

Return Number

1шт.

2

KMV2374

HOSE ASSY.,12.70 mm ID x 1200.00 mm

2шт.

3

KMV2377

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

4

KMV2378

TUBE ASSY.,16.1 mm ID x 21.7 mm OD

1шт.

5

166401A1

HALF-FLANGE

4шт.

6

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

5шт.

7

183-112VR

SPRING WASHER

5шт.

8

KAV0486

PIPE CLAMP

1шт.
